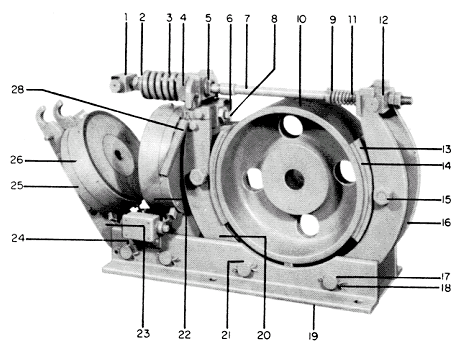

Ametek Gemco TM63 Heavy Duty AISE Spring Set Magnetic Release Shoe Brake Assembly
and All Replacement Parts


No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-TM-63 Ametek Gemco DC Brake Assembly 6" TM
Model TM-63
TM63
DC Magnetic Brake Assembly, Meets the AIST Standards
Heavy Duty Spring Set, Magnetic Release Shoe Brake Assembly
Direct Current Clapper Type Brake
6.00 Inch Diameter
Provided with a Shunt Wound Coil E006026
Designed for 1 or 8 Hour Duty Cycle
80 Volts Intermittent 64 Volts Continuous
50 FT LBS @ 1 Hour
40 FT LBS @ 8 Hours
Options Available some at additional cost include:
A Brake Wheel 6.00 X 3.125 / Finished or Pilot Bore
Series Wound Coil, same cost
AC to DC Rectifiers
Part E010326 with NEMA 4 Enclosure
Part E010326 Open Chassis Design
A Manual Hand Release Lever, latching or non-latching
NEMA 3 and 4 Brake Enclosures
Normally a Stock Item @ BPI
Ships from Stock to 8 Weeks
Dated 01-2023
0 $3,343.00
1 1 AME-E006069 Ametek Gemco Block on the Magnet End
For a TM-63 DC Brake
aka 318B788H09
(1LBS) H 4.00" L 4.00" W 4.00"
Dated 01-2024
1 $408.00
2 1 AME-E006034 Ametek Gemco Seat
Part E006034
Main Spring Seat / Retainer
For a 6 Inch TM-63 DC Brake
aka 318B795H09
Dated 01-2024
- 1 $208.00
3 1 AME-E006037 Ametek Gemco Spring
Part E006037
Main Spring
For a 6 Inch TM-63 DC Brake
Item 3, 1 per brake
aka 438A072H14
A Recommended Spare Part
Dated 01-2024
- 1 $96.00
4 1 AME-E006032 Ametek Gemco Block. Inner Hinge Block
Part E006032
For a 6 Inch TM-63 DC Brake Tie Rod
Item 4, 1per brake
aka 318B791H09
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
1 $348.00
5 1 AME-E006033 Ametek Gemco Bushing
Part E006033
Release Bushing
For a 6 Inch TM-63 DC Brake
aka 318B792H09
Dated 01-2024
- 1 $760.00
6 1 AME-E006045 Ametek Gemco Adjusting Bar
For a TM-63 DC Brake 6 Inch
aka 473B345H01
Dated 01-2024
- 0 $136.00
7 1 AME-E006049 Ametek Gemco Tie Rod Assembly
Part E006049
aka E006049006
For a TM-63 DC Brake 6 Inch
Item 7, 1 per brake
Old WEST 635C104G01
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(6LBS) H 5" L 24" W 6"
1 $342.00
8 1 AME-E006058 Ametek Gemco Screw. Adjusting Screw on a TM-63 Brake. Ref # 8, 1 per brake, 3/8 -16 X 1 & 1/2 1/11 not in price book - 0 $79.92
9 1 AME-E006028 Ametek Gemco Seat
Part E006028
Spring Seat / Plate Wheel End
For a 6 Inch TM-63 DC Brake
aka 318B777H09
Dated 01-2024
- 0 $52.00
10 1 AME-E006500 Ametek Gemco Brake Wheel 6 Inch
Part E006500
aka E006500999
Old Part 834D992H15
For the TM-63 DC Brake Assembly
And ET-6NA Thruster Brake
With the Offset Style Hub, Stock Bore
6.00 Inch Brake Wheel Diameter
3.13 Inch Face Width
3.00 Inch Hub Offset
3.50 Inch Hub Length Through Bore
3.25 Inch Hub Diameter
Solid Hub with Bore Center Drilled
2.00 Inch Maximum Recommended Bore
7375 Maximum RPM
Cast from ASTM A 536 Ductile Iron 80-60-03 or 80-55-06
Dated 01-2024
(16LBS) H 5" L 6" W 6" Box
10 $1,508.00
11 1 AME-E006036 Ametek Gemco Spring
Part E006036
Wheel End Spring
For a 6 Inch TM-63 DC Brake Tie Rod
Item 11, 1 per brake
A Recommended Spare Part
aka 438A070H14
Dated 01-2024
(1LB)
- 0 $69.00
12 1 AME-E006070 Ametek Gemco Brake Part TM-63
Part AME-E006070
Wheel End Hinge Block
For a TM-63 Brake
Item 12, 1 per brake
aka 318B787H09
Dated 01-2024
(2LBS) H 6" L 6" W 4" Box
- 0 $317.00
13 2 AME-E006023 Ametek Gemco Brake Shoe Assembly TM 6"
Part E006023
aka E006023002
For 6 Inch a TM-63, ET6 or ET6NA Brake
Bonded Premium Non-Asbestos Lining Material
Sold each, 2 per Brake
70 Degree Arc
Old Part 645C162G02 & 645C162J04 Casting #
Normally a Stock Item @ BPI
Ships from Stock to 4 weeks
Dated 01-2024
(2LBS) H 4" L 10" W 4" Box
2 $806.00
14 1 AME-E006059 Ametek Gemco Lining Kit
Part E006059
aka E006059005
For a 6 Inch TM-63 DC Brake
1 Pair of Linings & Rivets
Item 14, 1 per brake
70 Degree Radius
Old WEST 861C691G24
Older Style Drilled
New Style Linings for Bonded Shoes are also available
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
C. F. for Pricing
Dated 01-2024
(2LBS) H 4" L 8" W 4" Box
- 14 N/A N/A N/A
15 2 AME-E004070 Ametek Gemco Bolt
Part E004070
Hardened Brake Shoe Bolt
For a TM-43 or TM-63 DC Brake
aka 27D7221H04 E004070006
Item 15, 2 per brake, sold each
Dated 01-2024
(1LB)
- 0 $237.00
16 1 AME-E006056 Ametek Gemco Shoe Arm TM 6 Inch
Part E006056
Pair of Outer Brake Shoe Arms with Bushings
For a 6 Inch TM-63 DC Brake
Item 16, 1 per brake
aka 645C120G01
Ships in 3 Weeks
Dated 01-2024
(5LBS)
- 0 $558.00
17 2 AME-E004098 Ametek Gemco Bushing
Part E004098
For a TM-43 or TM-63 DC Brake
2 per brake, sold each
Old 52D9008H01 aka E004098999
Dated 01-2024
12 $15.00
18 3 AME-E006031 Ametek Gemco Pin
Part E006031
Pivot Pin
For a TM-43 or TM-63 DC Brake
Item 18, 3 per brake, sold each
Main Pivot Pins used at the bottom of the 2 Shoe Arms and 1 Coil Arm
aka 318B789H01
Dated 01-2024
9 $136.00
19 1 AME-E006044 Ametek Gemco Base. Base / Frame
For a TM-63 DC Brake
Item 19, 1 per brake
aka 473B344H01
C.F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
20 1 AME-E006060 Ametek Gemco Shoe Arm TM 6 Inch
Part E006060
Pair of Inner Brake Shoe Arms with Bushings
For a 6 Inch TM-63 DC Brake
Item 21, 1 per brake
aka 645C120G02
Ships in 3 Weeks
Dated 01-2024
(5LBS)
- 0 $744.00
21 2 AME-E004098 Ametek Gemco Bushing
Part E004098
For a TM-43 or TM-63 DC Brake
2 per brake, sold each
Old 52D9008H01 aka E004098999
Dated 01-2024
12 $15.00 Item #17 -
22 1 AME-E006042 Ametek Gemco Clapper. Inner Clapper
For a TM-63 DC Brake 6 Inch
Item 22, 1 per brake
aka 473B338G01
Dated 01-2024
- 0 $962.00
23 1 AME-E006061 Ametek Gemco Arm 6"
Part E006061
Old Part 645C141G01
Clapper Arm & Bushing Outer Assembly
For a 6 Inch TM-63 DC Brake
1 Pair, 1 Pair per Brake
Dated 01-2024
(6LBS)
- 1 $558.00
24 2 AME-E004098 Ametek Gemco Bushing
Part E004098
For a TM-43 or TM-63 DC Brake
2 per brake, sold each
Old 52D9008H01 aka E004098999
Dated 01-2024
12 $15.00 Item #17 -
25 1 AME-E006041 Ametek Gemco Clapper
Part E006041
Outer Clapper
For a 6 Inch TM-63 DC Brake
Item 25, 1 per brake
aka 473B337G01
Dated 01-2024
- 0 $760.00
26 1 AME-Coil and magnet N/A - 0 N/A N/A N/A
  1 AME-E006035 Ametek Gemco Seal. Dust Seal
Part E006035
Covers the coil gap
For a 6 Inch TM-63 DC Brake
1 per brake
Dated 01-2024
- 0 $100.00
28 2 AME-E006038 Ametek Gemco Spring
Part E006038
aka E006038993
Old West 438A11H06 318B778H03
Tension Spring
For a 6 Inch TM-63 DC Brake
Item 28, 2 per brake, sold each
A Recommended Spare Part
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
3 $69.00
