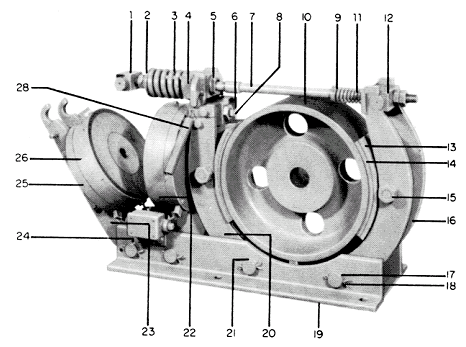

Ametek Gemco TM43 Heavy Duty AISE Spring Set Magnetic Release Shoe Brake Assembly
and All Replacement Parts


No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-TM-43 Ametek Gemco DC Brake Assembly TM
Part TM-43
TM43
DC Magnetic Brake Assembly, Mfg to AIST Standards
Heavy Duty Spring Set, Magnetic Release Shoe Brake Assembly
Direct Current Clapper Type Brake
4.5 Inch Diameter
Provided with a Shunt Wound Coil Part E004051
Designed for 1 or 8 Hour Duty Cycle
80 Volts Intermittent
64 Volts Continuous
25 Ft LBS @ 1 Hour
15 FT LBS @ 8 Hours
Options Available some at additional cost include:
A Brake Wheel 4.500 X 3.125 / Finished or Pilot Bore Part E004500
Series Wound Coil, same cost
AC to DC Rectifiers, Part E010326 with NEMA 4 Enclosure or Part E010326 Open Chassis Design
A Manual Hand Release Lever, latching or non-latching
NEMA 3 and 4 Brake Enclosures
Normally a Stock Item @ BPI with Shunt Wound Coil
Ships from Stock to 8 Weeks
Dated 01-2024
(41LBS) H 15" L 20" W 10" Box
0 $3,369.00
1 1 AME-E004142 Ametek Gemco Hinge Block
Magnet End
Part E004142
For a TM-43 DC Brake
Item 1, 1 per Brake
Dated 01-2024
- 0 $419.00
2 1 AME-E004076 Ametek Gemco Main Spring Seat
Part E004076
For a 4.5 Inch TM-43 DC Brake
On the Pull Rod
Item 2, 1 per brake
aka 318B795H01 E004076006
Dated 01-2024
- 0 $208.00
3 1 AME-E004079 Ametek Gemco Spring
Part E004079
Main Spring
For a 4.5 Inch TM-43 DC Brake
Item 3, 1 per brake
A recommended spare part
aka 438A072H15 E004079993
Dated 01-2024
- 1 $164.00
4 1 AME-E004074 Ametek Gemco Inner Hinge Block
Part E004074
For a 4.5 Inch TM-43 DC Brake Tie Rod
Item 4, 1 per Brake
aka 318B791H01 E004074006
Dated 01-2024
- 0 $262.00
5 1 AME-E004075 Ametek Gemco Bushing
Part E004075
Release Bushing
For a 4.5 Inch TM-43 DC Brake
aka 318B792H01 E004075006
Dated 01-2024
- 0 $400.00
6 1 AME-E004085 Ametek Gemco Adjusting Bar
Part E004085
For a TM-43 Brake Assembly
Item 6, 1 per brake
aka 473B345H02 aka E004085999
Dated 01-2021
- 0 $133.00
7 1 AME-E004097 Ametek Gemco Tie Rod
Part E004097
For a 4.5 Inch TM-43 DC Brake
Item 7, 1 per brake
Old 635C104G0 aka E004097006
Dated 01-2024
- 1 $319.00
8 1 AME-E004115 Ametek Gemco Screw. Adjusting Screw
For a TM-43 Brake Assembly
Item 8, 1 per Brake
C.F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
9 1 AME-E004071 Ametek Gemco Spring Seat
Part E004071
aka E004071999
Wheel End Spring Seat
For a 4.5 Inch TM-43 DC Brake
Item 9, 1 per brake
Old West 318B777H01
Ships in 2 to 3 Weeks
Dated 01-2024
- 0 $52.00
10 1 AME-E004500 Ametek Gemco Brake Wheel 4.5 Inch
Part E004500
aka E004500999
For the TM-43 DC Brake Assembly
With the Offset Style Hub
4.50 Inch Wheel Diameter
3.13 Inch Face Width
2.62 Inch Hub Offset
2.00 Inch Hub Length Through Bore
2.75 Inch Hub Diameter
Solid Hub with Bore Center Drilled
1.625 Inch Maximum Recommended Bore
9850 Maximum RPM
Cast from ASTM A 536 Ductile Iron
80-60-03 or 80-55-06
Dated 10-2021
(6LBS) H 5" L 5" W 5" Box
6 $1,272.24
11 1 AME-E004078 Ametek Gemco Spring
Part E004078
aka E004078993
Wheel End Spring
For a 4.5 TM-43 DC Brake Tie Rod
Item 11, 1 per brake
A recommended spare part
Old West 438A070H15
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
1 $64.00
12 1 AME-E004143 Ametek Gemco Block
Part E004143
aka E004143006
Wheel End Hinge Block
For a 4 Inch TM-43 DC Brake
Item 12, 1 per brake
Old West 318B787H01
Ships in 2 to 3 Weeks
Dated 01-2024
- 1 $317.00
13 2 AME-E004047 Ametek Gemco Brake Shoe Assembly TM-43
Part E004047
Brake Shoe & Lining
For a TM-43 4.5 Inch Electric Brake
Bonded Premium Non-Asbestos Lining Material
2 Per brake, sold each
70 Degree Arc
aka 645C555G02 E004047002
Dated 01-2024
(2LBS) H 4" L 5" W 4" Box STOCK @ BPI
- 0 $749.00
14 1 AME-E004117 Ametek Gemco Lining & Rivet Kit
Part E004117
For a TM-43 Brake Assembly
4.5 Inch Dia. Electric Brake
1 Pair Drilled & Countersunk Linings
For included Rivets, Qty 10
aka 961C691G23
Undrilled linings for bonded brake shoes are also available
C.F. for Pricing
Dated 01-2024
3 N/A N/A N/A
15 2 AME-E004070 Ametek Gemco Bolt
Part E004070
Hardened Brake Shoe Bolt
For a TM-43 or TM-63 DC Brake
aka 27D7221H04 E004070006
Item 15, 2 per brake, sold each
Dated 01-2024
(1LB)
- 0 $237.00
16 1 AME-E004118 Ametek Gemco Arm
Part E004118
Outer Brake Shoe Arms
For a TM-43 Brake
Item 16, 1 pair per brake
aka 645C544G01
Dated 01-2021
- 0 $479.00
17 2 AME-E004098 Ametek Gemco Bushing
Part E004098
For a TM-43 or TM-63 DC Brake
2 per brake, sold each
Old 52D9008H01 aka E004098999
Dated 01-2024
12 $15.00
18 3 AME-E006031 Ametek Gemco Pin
Part E006031
Pivot Pin
For a TM-43 or TM-63 DC Brake
Item 18, 3 per brake, sold each
Main Pivot Pins used at the bottom of the 2 Shoe Arms and 1 Coil Arm
aka 318B789H01
Dated 01-2024
9 $136.00
19 1 AME-E004084 Ametek Gemco Base / Frame
Part E004084
For a 4.5 Inch TM-43 DC Brake
Item 19, 1 per brake
Old 473B344H02 aka E004084006
C.F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
20 1 AME-E004119 Ametek Gemco Brake Shoe Arm
Part E004119
Inner Brake Shoe Arm with Bushings
For a 4 Inch TM-43 DC Brake
Item 21, 1 per brake
aka 645C544G02
Dated 01-2024
- 0 $634.00
21 2 AME-E004098 Ametek Gemco Bushing
Part E004098
For a TM-43 or TM-63 DC Brake
2 per brake, sold each
Old 52D9008H01 aka E004098999
Dated 01-2024
12 $15.00 Item #17 -
22 1 AME-E004088 Ametek Gemco Inner Clapper Arm
Part E004088
For a 4.5 Inch TM-43 DC Brake
Item 22, 1 pair per brake
Old 473B422G01 aka E004088006
Dated 01-2024
- 0 $760.00
23 1 AME-E004093 Ametek Gemco Outer Magnet Arm
Part E004093
For a 4.5 Inch TM-43 DC Brake
Item 23, 1 per brake
Old 645C540G01 aka E004093004
Dated 01-2024
- 0 $485.00
24 2 AME-E004098 Ametek Gemco Bushing
Part E004098
For a TM-43 or TM-63 DC Brake
2 per brake, sold each
Old 52D9008H01 aka E004098999
Dated 01-2024
12 $15.00 Item #17 -
25 1 AME-E004090 Ametek Gemco Outer Clapper Arms
Part E004090
For a 4.5 Inch TM-43 DC Brake
Item 25, 1 pair per brake
aka 645C540G01 aka E004090006
Dated 01-2024
- 0 $757.00
26 1 AME-Coil and magnet N/A - 0 N/A N/A N/A
  1 AME-E004077 Ametek Gemco Seal
Part E004077
Dust Seal for the Coil
On a 4.5 Inch TM-43 DC Brake
1 per brake
Old 318B917H01 aka E004077002
Dated 01-2024
- 0 $100.00
28 2 AME-E004080 Ametek Gemco Spring
Part E004040
aka E004040993
Tension Spring
For a 4.5 Inch TM-43 DC Brake
2 Per brake, sold each
Item 28, 2 per brake, sold each
A recommended spare part
Old West 438411H01
Normally a Stock Item @ BPI
Ships from Stock to 2 weeks
Dated 01-2024
(1LBS) H 4" L 5" W 4" Box
15 $83.00
