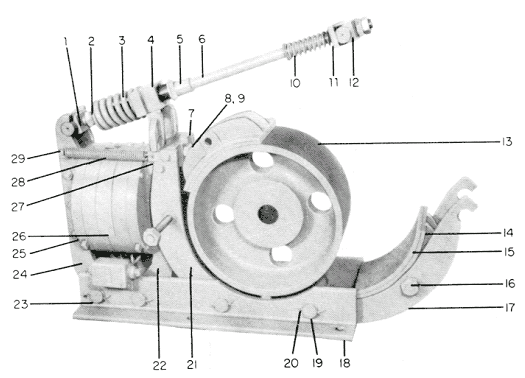

Ametek Gemco TM2311 Heavy Duty AISE Spring Set Magnetic Release Shoe Brake Assembly
and All Replacement Parts


No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-TM-2311 Ametek Gemco Heavy Duty DC Brake
Model TM-2311
AIST Spring Set Magnetically Released, Shoe Brake Assembly
Direct Current Clapper Style
23 Inch Wheel Diameter
Voltage DC with Shunt or Series Wound Coils
With Series Coils 4000 FT. LBS., 1/2 Hour & 2600 FT. LBS., 1 Hour
With Shunt Coils 4000 FT. LBS., 1 Hour & 3000 FT. LBS., 8 Hours
Available options at additional cost include:
Brake Wheel, Finished or Pilot / Stock Bore
Hand Release Lever, Enclosures, Set & Release Switches
Rectifier for AC Voltages
Ships in 11 to 12 Weeks
Dated 3-2021 CF
Brake Weight 1200 LBS., Net
(1300LBS) H 40" L 50" W 24" Skid / Box
- 0 $47,041.56
1 1 AME-E023062 Ametek Gemco Hinge Block on the Magnet End of a TM-2311 Brake, 1 per brake, 318B788H07, Item #1
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
2 1 AME-E023038 Ametek Gemco Spring Seat
Part E023038
Main Spring Seat
For a 23 Inch TM-23 DC Brake
1 per brake
aka 318B795H07
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
3 1 AME-E023045 Ametek Gemco Main Spring
Part E023045
aka E023045993
Main Spring for Brake Application
For a 23 Inch TM-2311 DC Brake, Coil End
Item 3, 1 per Brake
Old WEST 438A072H03
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
C. F. for Pricing
Dated 01-2024
(13LBS) H 5" L 9" W 5" Box
1 N/A N/A N/A
4 1 AME-E023036 Ametek Gemco Inner Hinge Block
Part E023036
aka E023036999
For a 23 Inch TM-2311 DC brake
Mounts on the Tie Rod
Item 4, 1 per Brake
Old WEST 318B791H07
C. F. for Pricing
Dated 01-2024
Ships in 4 Weeks
CF Dated 1-2020
- 1 N/A N/A N/A
5 1 AME-E019039 Ametek Gemco Release Bushing, 19 and 23 Inch Brakes, 1 per Brake, 318B792H06
Dated 01-2024
- 0 $1,211.00
6 1 AME-E023047 Ametek Gemco Tie Rod
Part E023047
For a 23 Inch TM-2311 DC Brake
Item 6, 1 per brake
aka 635C104G07
C. F. for Pricing
Dated 01-2024
- 1 N/A N/A N/A
7 1 AME-E023046 Ametek Gemco Adjusting Screw Block
Part E023046
aka E023046006
For a 23 Inch TM-2311 DC Brake
1 per Brake
Old WEST 438A429H01
Ships in 4 Weeks
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
8 1 AME-E019040 Ametek Gemco Adjusting Screw
Part E019040
aka E019040999
For a 19 Inch TM-1985 & a
23 Inch TM-2311 DC Brake
Item 8, 1 Per Brake
Old WEST 318B793H06
Ships in 4 Weeks
Dated 01-2024
- 0 $509.00
9 1 AME-Flex locknut N/A - 0 N/A N/A N/A
10 1 AME-E023027 Ametek Gemco Wheel End Spring
Part E023027
aka E023027993
For a TM 19, 23 or 30 Inch Brake Tie Rod
Item 10, 1 per Brake
A Recommended Spare Part
aka Old WEST 24D5096H11
Dated 01-2024
(3LBS) H 4" L 5" W 4" Box
0 $54.00
11 1 AME-E023030 Ametek Gemco End Spring Seat TM-2311
Part E023030
aka E023030999
For a 23 Inch TM-2311 DC Brake
1 per brake
Old WEST 318B777H07
Ships in
C. F. for Pricing
Dated 01-2024
- 1 N/A N/A N/A
12 1 AME-E023063 Ametek Gemco Wheel End Hinge Block TM-2311
Part E023063
aka E023063006
For a 23 Inch TM-2311 DC Brake
1 per brake
Old WEST 318B787H07
C. F. for Pricing
Dated 01-2024
- 1 N/A N/A N/A
13 1 AME-E023500 Ametek Gemco Brake Wheel 23 Inch
For the TM-2375 DC Brake Assembly
With the Offset Style Hub, Stock Bore
23.02 Inch Brake Wheel Diameter
11.25 Inch Brake Face Width
8.75 Inch Hub Offset from Centerline
7.31 Inch Hub Length Through Bore
8.50 Inch Hub Diameter
Solid Hub with Bore Center Drilled
5.50 Inch Maximum Recommended Bore
1925 Maximum RPM
Cast from ASTM A 536 Ductile Iron 80-60-03 or 80-55-06
Part AME-E023500
(450LBS) H 12" L 23" W 23" Box on Skid, Motor Freight Only
[Amazon]
- 1 $9,256.41
14 2 AME-E023025 Ametek Gemco Brake Shoe & Lining TM23
Part E023025
aka E023025999
Old Part 635C316G01
For a 23 Inch TM-2311 DC Brake
Item 14, 2 per brake, sold each
Premium Bonded, Non-Asbestos Material
Ships in 10 to 11 Weeks, Peck MI
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
15 1 AME-E023055 Ametek Gemco Lining Kit
Part E023055
Pair of Drilled Linings & Fasteners
Linings For 2 Brake Shoes
38 Brass Rivets
For a 23 Inch TM-2311 DC Brake
Old 861C691G2111 aka E023055005
C. F. for Pricing
Dated 01-2024
- 2 N/A N/A N/A
16 2 AME-E023028 Ametek Gemco Brake Shoe Bolt TM-2311
Part E023028
aka E023028002
Hardened Brake Shoe Bolt
For Mounting the Brake Shoes
Includes Bolt Nut & Lockwasher
For a 23 Inch TM-2311 DC Brake
Item 16, 2 per Brake, sold each
Old WEST 24D6387G02
Ships in 4 Weeks
C. F. for Pricing
Dated 01-2024
(12LBS) H 4" L 12" W 4" Box
- 0 N/A N/A N/A
17 1 AME-E023056 Ametek Gemco Brake Shoe Arm TM-2311
Part E023056
aka E023056004
Brake Shoe Arm
For a 23 Inch TM-2311 DC Brake
1 per brake
Old WEST 637C324G01
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
  2 AME-E019028 Ametek Gemco Bushing
Part E019028
For the 2 Brake Shoes & 2 Coil Clapper Arms
On a 19" TM-1985 or a 23" TM-2311 DC Brake
8 per Brake, 4 pair, sold each
aka 31D4114H20
Dated 01-2024
(1LB)
- 108 $71.00
18 1 AME-E023057 Ametek Gemco Brake Base - Frame TM-2311
Part E023057
aka E023057006
1 per brake
Old West 434C392G01
Ships in 6 Weeks, Peck MI
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
19 8 AME-E019029 Ametek Gemco Bushing
Part E019029
For the Brake Base on TM-1985 and TM23-11 Brakes
8 per Brake, 4 pair, sold each
aka 31D4118H1
Dated 01-2024
(1LB)
- 120 $49.00
20 4 AME-E023034 Ametek Gemco Pin
Part E023034
Pivot Pin
For a 23 Inch TM-2311 DC brake
4 per Brake, sold each
aka Old West 318B789H07
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
21 1 AME-E023058 Ametek Gemco Inner Brake Shoe Arm TM-2311
Part E023058
aka E023058004
Inner Brake Shoe Arm with Bushings
For a 23 Inch TM-2311 DC Brake
1 per brake
Old WEST 637C324G02
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
  2 AME-E019028 Ametek Gemco Bushing
Part E019028
For the 2 Brake Shoes & 2 Coil Clapper Arms
On a 19" TM-1985 or a 23" TM-2311 DC Brake
8 per Brake, 4 pair, sold each
aka 31D4114H20
Dated 01-2024
(1LB)
- 108 $71.00 Item #17 -
22 1 AME-E023052 Ametek Gemco Clapper & Arm TM2311
Part E023052
aka E023052004
Inner Clapper & Arm near Coil
For a 23 Inch TM-2311 Brake
Item 22, 1 per brake
Old WEST 637C343G01
Ships in 7 to 8 Weeks, Peck MI
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
  2 AME-E019028 Ametek Gemco Bushing
Part E019028
For the 2 Brake Shoes & 2 Coil Clapper Arms
On a 19" TM-1985 or a 23" TM-2311 DC Brake
8 per Brake, 4 pair, sold each
aka 31D4114H20
Dated 01-2024
(1LB)
- 108 $71.00 Item #17 -
23 1 AME-E023029 Ametek Gemco Stop Pin
Part E023029
aka E023029006
For a 23 Inch TM-2311 DC Brake
1 per brake
Old WEST 318B571H07
Ships in 4 Weeks
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
24 1 AME-E023051 Ametek Gemco Clapper Arm on a TM-2311 Brake Assembly. Ref. #24. 1 per brake. 637C362G01
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
25 1 AME-E023040 Ametek Gemco Clapper
For a TM-2311 Brake Assembly
Item 25, 1 per brake
aka 319B098G01
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
26 2 AME-Coil and magnet N/A - 0 N/A N/A N/A
  1 AME-E023039 Ametek Gemco Dust Seal for Coil on a TM2311 Electric Brake, 1 Per Brake,318B917H07
CF Dated 1-2020
- 0 N/A N/A N/A
27 2 AME-E023031 Ametek Gemco Spring Clip
Part E023031
For a 23 Inch TM-2311 DC Brake
Item 27, 2 per brake
aka Old West 318B778H07
Ships in
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
28 2 AME-E023044 Ametek Gemco Tension Spring TM19 -23
Part E023044
aka E023044993
Tension Spring
For a 19 or 23 Inch TM Brake
Item 28, 2 per brake, sold each
A recommended spare part
Old WEST 438A069H05
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
C. F. for Pricing
Dated 01-2024
(1LB) H 4" L 8" W 4" Box
9 $89.64
29 1 AME-E023035 Ametek Gemco Pin
Part E023035
Tension Spring Pin
1 per brake
aka old West 318B790H07
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)

Web Site Features

Part Number Lookup

Enter at least three characters of a Gemco part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Application Notes

Application Notes

Check-out application notes compiled using real-life situations our clients have efficiently resolved using various Gemco products, in these application areas:

  • Cranes
  • Battery Manufacturing
  • Fiberglass Winders
  • Hydraulic Cylinders
  • Crusher/Baler
  • Stretch Hooding Machine
  • Electric Arc Furnace Cover
  • And more
PLS, PLC and Network Modules

PLS, PLC and Network Modules

  • 1746 LDT Interface Card
  • 1989 Quik-Set III Multi-Turn PLS
  • 1990DN DeviceNet Resolver
     Interface Module
  • 1991 Quik-Set IV UHS PLS
  • 1992 Press Set
  • 1995A/B/E/L Micro-Set PLS
  • 1996 Ram Set
  • 2110 Shut Height Monitor
  • 2120 PLC Interface Module
  • 2500 High Speed PLS

Rotary Feedback

Rotary Limit Switches, Position Sensors, Resolvers, Encoders

  • 1950 Precision Snap Switches
  • 1970 Drive-Chek Control
  • 1980 Rotating Cam Limit Switch
  • 1980R Rotating Cam Limit
     Switch with Resolver
  • 1983 Optical Limit Switch
  • 1986A standard foot mount
  • 1986B 2.25" sqr flange mount
  • 1986C 2.06" sqr flange mount
  • 1986D 2.50" dia face mount
  • 1986DN DeviceNet resolver
  • 1986E 100mm face mount
  • 1986G square flange mount
  • 1986GG multi-turn dual
  • 1986I 4.00" round face mount
  • 1986F standard block style
  • 1986H servo mount resolver
  • 1986MD mill duty housing
  • 1986XP explosion proof
  • 1997 Gate Hoist Rotating Cam
     Limit Switch, Designed to
     Meet Specifications of The
     Corps of Engineers

  • 2000 RLS
  • 2006 RLS
  • 3001 Adjustable Couplings
Linear Feedback

Linear Displacement Transducers

  • 925 Linear Cable Reel Sensor
  • 950IS Intrinsically Safe LDT
  • 950MD Mill Duty Housing LDT
  • 952 BlueOx LDT
  • 953A/D/SSI VMAX LDT
  • 953N ReadyLink EtherNet/IP
    LDT with RapidRecall
  • 955 eBrik
  • 955A BRIK Gen III LDT
  • 955C/CA/CD/CDQ BRIK Gen III
  • 955D BRIK Gen III LDT
  • 955DQ BRIK Gen III LDT
  • 955LC BRIK LDT
  • 955S Smart BRIK LDT
  • 955 BRIK Accessories
  • 956 BLOK Housing Option
  • 956S BLOK LDT
  • 957N ReadyLink EtherNet/IP
    LDT with RapidRecall
  • 957A, D & SSI Brik LDT
  • 957A/D/SSI BRIK LDT
    Accessories
  • Rod Style LDT Accessories
  • LDT Magnets, Cables,
    Accessories and Parts
  • 958A Embedded LDT
Other Measurements

Other Measurements

  • 6012/6013 Electrode
    Holders/Electrodes
  • 7010 Tilt Switch Float
  • 7014 Unifloat
  • 7100 Leak Detect Stik
  • 7230 HT Digital Probe
  • 7250 Digital Stik
  • 7330 Pro-Stik II
Press Safety Products

Press Safety Products

  • 1999 Semelex II Safetimeter
  • 1025 Foot and Palm Switches

Gemco Industrial Brakes

Gemco Industrial Brakes

Electro-Thrust Brakes (ET)
   - Thrust Shoe Brakes
Hydraulic Brakes (H, HM)
   - Hydraulic Shoe Brakes
   - Replacement Parts
Magnetic Brakes (TM)
   - Magnetic DC Shoe Brakes
   - Replacement Parts
Solenoid Brakes (CB)
   - Solenoid AC Shoe Brakes
MSDS
   - MSDS Information
Control Relays

Control Relays

  • 1500 Induction Style Relay
  • 5200 Solid State Relay
  • 5400 Plug In Style Solid State
    Relay
  • 5600 Solid State Relay
  • 8040 Standard Control and
    Alarm Panel
  • Motogard - Over-Temperature
    Protection
Frequently Requested Quotations

Frequently Requested Quotations

  • Actuating Cylinder
  • Hydraulic Shoe Brakes
  • Solenoid DC Shoe Brakes
  • Solenoid AC Shoe Brakes
  • Various Replacement Parts
  • 1950 Series Snap Switches
  • And more

This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
  ACH Form: Word   /   PDF
Supplier of Industrial Brake Parts Since 1985
