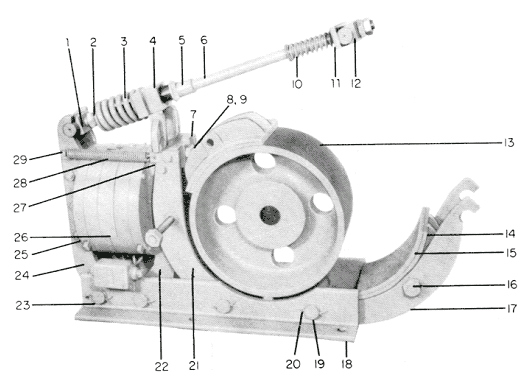

Ametek Gemco TM1665 Heavy Duty AISE Spring Set Magnetic Release Shoe Brake Assembly
and All Replacement Parts


No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-TM-1665 Ametek Gemco DC Brake 16 Inch
Part TM-1665
aka TM1665
Heavy Duty AIST Spring Set Magnetic Release Shoe Brake Assembly
Direct Current Clapper Type
16 Inch Wheel Diameter,
Voltage DC with Shunt or Series Wound Coils
With Series Coils 1000 Ft. Lbs. 1/2 Hour & 650 Ft Lbs. 1 Hour
With Shunt Coils 1000 Ft. Lbs. 1 Hour & 750 Ft Lbs 8 Hours
A 16 X 6.75 Inch Brake Wheel is not included
Rectifier for AC Voltages are available at additional cost
Mfg in Peck MI
Ships in 10 Weeks, Peck MI
Dated 01-2023
- 0 $17,413.00
1 1 AME-E016073 Ametek Gemco Hinge Block, Magnet End on a TM1665 Brake Assembly, - 0 $645.84
2 1 AME-E016206 Ametek Gemco Main Spring Seat on a TM1665 Brake Assembly, 1 per Brake, 318B795H05...
Dated 01-2024
- 0 $525.00
3 1 AME-E016039 Ametek Gemco Spring
Part E016039
Main Spring, Brake Application
For a 16 Inch TM-1665 DC Brake, Coil End
Item 3, 1 per Brake
aka Old West 438A072H07
aka E016039993
Normally a stock item @ BPI
C. F. for Pricing
Dated 01-2024
(9LBS) H 4" L 7" W 4" Box
2 N/A N/A N/A
4 1 AME-E016035 Ametek Gemco Block
Inner Hinge Block
For a TM-1665 Brake Tie Rod
Dated 01-2024
Item 4, 1 per Brake
aka 318B791H05
- 0 $830.00
5 1 AME-E013037 Ametek Gemco Bushing
Part E013037
Release Bushing
For a 13 Inch TM-1355 & TM-1665 DC Brake
On the Tie Rod
Item 5, 1 per Brake
Old 318B792H04 aka E013037002
Dated 01-2024
- 0 $849.00
6 1 AME-E016200 Ametek Gemco Tie Rod TM16
Part E016200
Old Part 635C104G05
For a 16 Inch TM-1885 DC Brake
Ref # 6
1 per brake
Ships in 3 to 4 Weeks
Dated 01-2024
- 2 $956.00
7 1 AME-E016040 Ametek Gemco Adjusting Screw Block on a TM1665 Brake Tie Rod. 438A352H01
Dated 01-2024
- 1 $763.00
8 1 AME-E016036 Ametek Gemco Screw TM13 TM16
Adjusting Screw
Part E016036
Old Part 318B793H04
For a TM-1355 or TM-1665 Brake
1 per Brake
C. F. for Pricing
Dated 01-2024
(3LBS)
- 4 $323.00
9 1 AME-Flex locknut N/A - 0 N/A N/A N/A
10 1 AME-E016207 Ametek Gemco Spring
Part E016207
Wheel End Spring on the Tie Rod
Item #10
Qty 1 Per Brake
A Recommended Spare Part
Normally a Stock Item @ BPI
Dated 01-2024
(1LB)
- 0 $124.00
11 1 AME-E016203 Ametek Gemco Wheel End Spring Seat
Part E016203
Old Part 318B777H05
For a 16 Inch TM-1665 DC Brake
1 per Brake
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(1LB)
- 0 $239.00
12 1 AME-E016205 Ametek Gemco Hinge Block, Wheel End Hinge Block on a TM1355 or TM-1665 Brake, 1 per Brake, new style..
Dated 01-2024
- 0 $1,101.00
13 1 AME-E016500 Ametek Gemco Brake Wheel 16 Inch TM
Part E016500
aka E0016500999
For the TM-1655 DC Brake Assembly
And ET-16 Thruster Brake
With the Offset Style Hub, Stock Bore
16.02 Inch Brake Wheel Diameter
6.75 Inch Face Width
6.50 Inch Hub Offset
5.50 Inch Hub Length Through Bore
7.00 Inch Hub Diameter
Solid Hub with Bore Center Drilled
4.50 Inch Maximum Recommended Bore
2750 Maximum RPM
Cast from ASTM A 536 Ductile Iron 80-60-03 or 80-55-06
Old WEST 7937A40H01
Motor Freight Only
Ship in 4 Weeks
Dated 10-2021
(150LBS) H 10" L 16" W 16" Box on Skid
- 1 $5,428.08
14 2 AME-E016025 Ametek Gemco Brake Shoe Assembly TM 16"
Part E016025
aka E016025002
Old Part 635C227G01
For a 16 Inch TM-1665 or ET-16 Brake
Premium Non-Asbestos Material Bonded to the Brake Shoe
Item 14, 2 per brake, sold each
Dated 01-2024
(31LBS) H 12" L 10" W 12" Box
0 $1,698.00
15 1 AME-E016053 Ametek Gemco Lining Kit TM-1665
Part E016053
Old Part 861C691G19
Pair of Drilled Countersunk Linings with Fasteners
Linings For 2 Brake Shoes
XX Brass Rivets
For a 16 Inch TM-1655 DC Brake
Ships in 3 to 4 Weeks
Dated 01-2024
(7LBS) H 8" L 14" W 8" Box
- 3 $353.00
16 2 AME-E016027 Ametek Gemco Bolt
Part E016027
Old Part 24D6387G03
Brake Shoe Bolt
For a 16 Inch TM-1655 & ET-16 Brake
Includes Hardened Bolt
Nut & Pin
Item 16, 2 per brake, sold each
Ships in 3 Weeks, Peck MI
Dated 01-2024
(8LBS) H 4" L 8" W 4" Box
- 0 $420.00
17 1 AME-E016060 Ametek Gemco Outer Brake Shoe Arm with Bushings on a TM1665 Brake. Ref. # 17. 1 per brake. 635C240G01
Dated 01-2024
- 0 $1,972.00
  2 AME-E013027 Ametek Gemco Bushing
Part E013027
For a 13 Inch TM-1355 DC Brake
6 per brake, sold each
Old 31D4114H12 aka E013027999
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
12 $46.00
18 1 AME-E016051 Ametek Gemco Base on a TM-1665 Brake assembly. Ref. #18. 1 per brake. 635C235G01
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
19 8 AME-E013028 Ametek Gemco Bushing
Part E013028
aka E013028999
For a 13 or 16 Inch TM DC Brake
Item, 19 8 per brake, sold each
Old Part 31D4118H06
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 6" W 4" Box
- 41 $49.00
20 4 AME-E016033 Ametek Gemco Pivot Pin TM1665
Part E016033
aka E016033006
Pivot Pin
For a 16 Inch TM-1665 DC Brake
Item # 20
4 per brake, sold each
Old Part 318B789H05
Ships in 2 to 3 Weeks
Dated 01-2024
- 0 $406.00
21 1 AME-E016061 Ametek Gemco Inner Brake Shoe Arm with Bushings on a TM1665 Brake. Ref. #21. 1 per brake. 635C240G02
Dated 01-2024
- 0 $1,505.00
  2 AME-E013027 Ametek Gemco Bushing
Part E013027
For a 13 Inch TM-1355 DC Brake
6 per brake, sold each
Old 31D4114H12 aka E013027999
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
12 $46.00 Item #17 -
22 1 AME-E016052 Ametek Gemco Clapper & Arm on a TM-1665 Brake Assembly. Ref. #22. 1 per brake. Old Westinghouse #635C236G011
Dated 01-2024
- 0 $4,295.00
  2 AME-E013027 Ametek Gemco Bushing
Part E013027
For a 13 Inch TM-1355 DC Brake
6 per brake, sold each
Old 31D4114H12 aka E013027999
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
12 $46.00 Item #17 -
23 1 AME-E016028 Ametek Gemco Pin on a TM1665 Brake, 1 per Brake, 318B571H05
Dated 01-2024
- 0 $220.00
24 1 AME-E016063 Ametek Gemco Clapper Arm on a TM-1665 Brake Assembly. Ref. #24. 1 per brake. 635C238G01...
Dated 01-2024
- 0 $1,547.00
25 1 AME-E016050 Ametek Gemco Clapper on a TM-1665 Brake Assembly. Ref #25. 1 per brake. 318907G01..
Dated 01-2024
- 0 $3,244.00
26 2 AME-Coil and magnet N/A - 0 N/A N/A N/A
  1 AME-E016038 Ametek Gemco Dust Seal
Part E016038
Old Part 318B917H05
Coil Gap Seal
For a 16 Inch TM-1665 DC Brake Assembly
1 per brake.
Ships in 10 Days, Peck MI
Dated 01-2024
(1LB)
- 0 $134.00
27 2 AME-E016030 Ametek Gemco Spring Clip on a TM-1665 Brake Assembly. Ref # 27 2 per brake. 318B778H05
Dated 01-2024
- 0 $92.00
28 2 AME-E013044 Ametek Gemco Spring TM13 TM16
Part E013044
Old Part 438A411H05
Coil Pack Tension Spring
For a TM-1355 & TM-1665 DC Brake
Item 28, 2 per brake, sold each
A Recommended Spare Part
Normally a Stock Item @ BPI
Ships from Stock to 10 Days
Dated 01-2024
(1LB)
4 $111.00
29 1 AME-E016034 Ametek Gemco Pin. Tension Spring Pin on a TM-1665 Brake Assembly. Ref # 29 1 per brake. 318B790H05 (<1LB)
Dated 01-2024
- 2 $52.00
