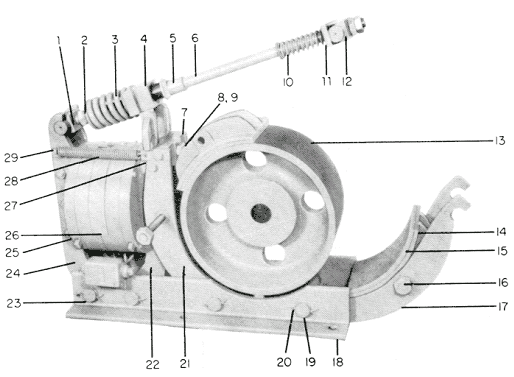

Ametek Gemco TM1355 Heavy Duty AISE Spring Set Magnetic Release Shoe Brake Assembly
and All Replacement Parts


No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-TM-1355 Ametek Gemco DC Brake 13 Inch
Part TM-1355
TM1355
Heavy Duty 13 Inch DC Magnetic Brake Assembly
Manufactured to AIST Specifications
Direct Current Clapper Type
13 Inch Wheel Diameter
Voltage DC
With Shunt or Series Wound Coils
Shunt Coils 550 FT. LBS. 1 Hour & 400 Ft Lbs 8 Hours
Series Coils 550 FT. LBS. 1/2 Hour & 365 FT Lbs. 1 Hour
Options available at additional cost Include:
13 Inch Brake Wheel with a Pilot or Finished Bore & Keyway
Secondary Operation via a Hydraulic Slave Cylinder
For progressive brake application from a crane cab
A Rectifier for AC to DC Conversion - Operation
Manual Hand Release Lever
Set or Release Switches to confirm brake status
Ships via Motor Freight Only
Ships in 10 Weeks, Peck MI
Dated 01-2023
(330LBS) Gross H 16" L 26" W 36" Skid
0 $11,734.00
1 1 AME-E013125 Ametek Gemco Hinge Block
Part E013125
Hinge Block, Magnet End
For a 13 Inch TM-1355 DC Brake
1 per brake
Old 318B788H04 aka E013025006
Dated 01-2024
- 0 $896.00
2 1 AME-E013039 Ametek Gemco Seat
Part E013039
Main Spring Seat / Retainer
For a 13 Inch TM-1355 DC Brake
On the Tie Rod
Item 2, 1 per Brake
Old 318B795H04 aka E013039006
Dated 01-2024
- 0 $456.00
3 1 AME-E013042 Ametek Gemco Spring
Part E013042
Main Spring for Brake Application
For a 13 Inch TM-1355 1 DC Brake
Item 3, 1 per Brake
Old 438A072H09 aka E013042993
Normally a stock item @ BPI
Dated 01-2024
(3LBS) H 4" L 5" W 4" Box
- 0 $596.00
4 1 AME-E013036 Ametek Gemco Inner Hinge Block
Part E013036
Inner Hinge Block
For a 13 Inch TM-1355 DC Brake
Located on the Tie Rod
Item 4, 1 per Brake
Old 318B791H04 aka E013036999
Dated 01-2024
Dated 01-2021
- 0 $736.00
5 1 AME-E013037 Ametek Gemco Bushing
Part E013037
Release Bushing
For a 13 Inch TM-1355 & TM-1665 DC Brake
On the Tie Rod
Item 5, 1 per Brake
Old 318B792H04 aka E013037002
Dated 01-2024
- 0 $849.00
6 1 AME-E013052 Ametek Gemco Tie Rod
Part E013052
For a 13 Inch TM-1355 DC Brake
Item 6, 1 per brake
Old 635C104G04 aka E013052006
Dated 01-2024
(6LBS) H 5" L 27" W 6" Box
0 $781.00
7 1 AME-E013045 Ametek Gemco Adjusting Screw Block
Part E013045
For a 13 Inch TM-1355 DC Brake
Item 7, 1 per brake
Old 438A456H01 aka E013045999
Dated 01-2024
- 0 $695.00
8 1 AME-E016036 Ametek Gemco Screw TM13 TM16
Adjusting Screw
Part E016036
Old Part 318B793H04
For a TM-1355 or TM-1665 Brake
1 per Brake
C. F. for Pricing
Dated 01-2024
(3LBS)
- 4 $323.00
9 1 AME-Flex locknut N/A - 0 N/A N/A N/A
10 1 AME-E013041 Ametek Gemco Spring
Part E0013041
aka E013041993
Old Part 438A070H09
Wheel End Spring
For a 13 Inch TM-1355 DC Brake
Located on the Tie Rod
Item 10, 1 per Brake
A Recommended Spare Part
Dated 01-2024
(2LBS)
- 4 $118.00
11 1 AME-E013031 Ametek Gemco Spring Seat / Plate
Part E013031
Wheel End Spring Seat / Plate on the Pull Rod
For a 13 Inch TM-1355 DC Brake
1 per Brake
Old 318B777H04 aka E013031999
Dated 01-2024
- 0 $237.00
12 1 AME-E016031 Ametek Gemco Block
Part E016031
Wheel End Hinge Block
For an Older 13 Inch TM-1355 DC Brake
1 per Brake
aka 318B787H05
Newer Style Brake uses part E016205
Dated 01-2024
- 0 $1,101.00
13 1 AME-E013500 Ametek Gemco Brake Wheel 13 Inch TM
Part E013500
aka E0135000999
For the TM-1355 & ET-13 Brakes
With the Offset Style Hub
And a Pilot Bore
13.02 Inch Brake Wheel Diameter
5.75 Inch Face Width
4.25 Inch Hub Offset
5.38 Inch Hub Length Through Bore
5.75 Inch Hub Diameter
Solid Hub with Bore Center Drilled
3.75 Inch Maximum Recommended Bore
3400 Maximum RPM
Cast from ASTM A 536 Ductile Iron
80-60-03 or 80-55-06
Dated 10-2021
Ships in 4 weeks, Peck MI
(95LBS) H 9" L 13" W 13" Box
- 1 $3,477.60
14 2 AME-E013025 Ametek Gemco Brake Shoe & Lining TM13
Part E013025
aka E013025002
Old Part 439C201G01
For a 13 Inch TM1355 or ET13 Brake
Item 14, 2 per brake, sold each
Bonded, Premium Non-Asbestos Lining Material
Normally a Stock item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(12LBS) H 8" L 12" W 8" Box
- 0 $1,275.00
15 1 AME-E013055 Ametek Gemco Lining Kit
Part E013055
aka E013055005
For a 13 Inch TM-1355 DC Brake
Pair of Premium Non-Asbestos Drilled & Countersunk Linings with Fasteners
Qty 26, Rivets
Old WEST 861C691G18
A recommended spare part
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
C. F. for Pricing
Dated 01-2024
(3LBS)
- 0 N/A N/A N/A
16 2 AME-E013053 Ametek Gemco Bolt TM1355
Part E013053
aka E013053006
Old Part 24D6387G04
Hardened Brake Shoe Bolt Assembly
For 13 Inch TM-1355 DC Brake
Item 16, 2 per brake, sold each
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(5LBS)
- 0 $367.00
17 1 AME-E013064 Ametek Gemco Outer Brake Shoe Arm
Part E013064
For 13 Inch TM-1355 DC Brake
Item 17, 1 per brake
Old 439C192G05 aka E013064004
Dated 01-2024
- 3 $1,282.00
  2 AME-E013027 Ametek Gemco Bushing
Part E013027
For a 13 Inch TM-1355 DC Brake
6 per brake, sold each
Old 31D4114H12 aka E013027999
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
12 $46.00
18 1 AME-E013066 Ametek Gemco Base - Frame TM13
Part E013066
aka E013066006
For a 13 Inch TM-1355 DC Brake
Item 18, 1 per brake
Old WEST 439C204G01
Ships in 3 Weeks, Peck MI
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
19 8 AME-E013028 Ametek Gemco Bushing
Part E013028
aka E013028999
For a 13 or 16 Inch TM DC Brake
Item, 19 8 per brake, sold each
Old Part 31D4118H06
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 6" W 4" Box
- 41 $49.00
20 4 AME-E013034 Ametek Gemco Pin
Pivot Pin
For a TM-1355 Brake
4 per brake, sold each
aka 318B789H04
Dated 01-2024
(2LB)
- 0 $375.00
21 1 AME-E013067 Ametek Gemco Inner Brake Shoe Arm
Part E013067
For 13 Inch TM-1355 DC Brake
Item 21, 1 per brake
Old 439C192G06 aka E013067004
Dated 01-2024
- 3 $1,257.00
  2 AME-E013027 Ametek Gemco Bushing
Part E013027
For a 13 Inch TM-1355 DC Brake
6 per brake, sold each
Old 31D4114H12 aka E013027999
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
12 $46.00 Item #17 -
22 1 AME-E013068 Ametek Gemco Clapper & Arm
Part E013068
For a 13 Inch TM-1355 DC Brake
Item 22, 1 per brake
Old 489C202G01 aka E013068004
Ships in 3 week, Peck MI
Dated 01-2024
- 0 $3,190.00
  2 AME-E013027 Ametek Gemco Bushing
Part E013027
For a 13 Inch TM-1355 DC Brake
6 per brake, sold each
Old 31D4114H12 aka E013027999
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
12 $46.00 Item #17 -
23 1 AME-E013030 Ametek Gemco Pin
Part E013030
For a 13 Inch TM-1355 DC Brake
Old 3188571H04 aka E013030006
Dated 01-2024
- 4 $206.00
24 1 AME-E013056 Ametek Gemco Clapper Arm TM-1355
Part E013056
aka E013056004
For a 13 Inch TM-1355 DC Brake
Item 24, 1 per brake
Old WEST., 439C203G01
Ships in 4 Weeks
Dated 01-2024
- 0 $1,275.00
25 1 AME-E013029 Ametek Gemco Clapper
Part E013029
For a 13 Inch TM-1355 DC Brake
Item 25, 1 per brake
Old 318B560G01 aka E013029006
Dated 01-2024
Ships in 4 weeks, Peck MI
- 0 $2,480.00
26 2 AME-Coil and magnet N/A - 0 N/A N/A N/A
  1 AME-E013040 Ametek Gemco Seal
Part E013040
Dust Seal for the coil gap
For a 13 Inch TM-1355 DC Brake
1 per brake
Old 318B917H04 aka E013040002
Dated 01-2024
(1LB)
- 0 $134.00
27 2 AME-E013032 Ametek Gemco Spring Clip
Part E013032
For a 13 Inch TM-1355 DC Brake
Item 27, 2 per brake, sold each
Old 318B778H04 aka E013032002
Dated 01-2024
(1LB)
- 4 $92.00
28 2 AME-E013044 Ametek Gemco Spring TM13 TM16
Part E013044
Old Part 438A411H05
Coil Pack Tension Spring
For a TM-1355 & TM-1665 DC Brake
Item 28, 2 per brake, sold each
A Recommended Spare Part
Normally a Stock Item @ BPI
Ships from Stock to 10 Days
Dated 01-2024
(1LB)
4 $111.00
29 1 AME-E013035 Ametek Gemco Pin
Part E013035
Tension Spring Pin
For a 13 Inch TM-1355 DC Brake
Item 29, 1 per brake
Old 318B790H04 aka E013035006
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 4 $46.00
Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)

Web Site Features

Part Number Lookup

Enter at least three characters of a Gemco part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Application Notes

Application Notes

Check-out application notes compiled using real-life situations our clients have efficiently resolved using various Gemco products, in these application areas:

  • Cranes
  • Battery Manufacturing
  • Fiberglass Winders
  • Hydraulic Cylinders
  • Crusher/Baler
  • Stretch Hooding Machine
  • Electric Arc Furnace Cover
  • And more
PLS, PLC and Network Modules

PLS, PLC and Network Modules

  • 1746 LDT Interface Card
  • 1989 Quik-Set III Multi-Turn PLS
  • 1990DN DeviceNet Resolver
     Interface Module
  • 1991 Quik-Set IV UHS PLS
  • 1992 Press Set
  • 1995A/B/E/L Micro-Set PLS
  • 1996 Ram Set
  • 2110 Shut Height Monitor
  • 2120 PLC Interface Module
  • 2500 High Speed PLS

Rotary Feedback

Rotary Limit Switches, Position Sensors, Resolvers, Encoders

  • 1950 Precision Snap Switches
  • 1970 Drive-Chek Control
  • 1980 Rotating Cam Limit Switch
  • 1980R Rotating Cam Limit
     Switch with Resolver
  • 1983 Optical Limit Switch
  • 1986A standard foot mount
  • 1986B 2.25" sqr flange mount
  • 1986C 2.06" sqr flange mount
  • 1986D 2.50" dia face mount
  • 1986DN DeviceNet resolver
  • 1986E 100mm face mount
  • 1986G square flange mount
  • 1986GG multi-turn dual
  • 1986I 4.00" round face mount
  • 1986F standard block style
  • 1986H servo mount resolver
  • 1986MD mill duty housing
  • 1986XP explosion proof
  • 1997 Gate Hoist Rotating Cam
     Limit Switch, Designed to
     Meet Specifications of The
     Corps of Engineers

  • 2000 RLS
  • 2006 RLS
  • 3001 Adjustable Couplings
Linear Feedback

Linear Displacement Transducers

  • 925 Linear Cable Reel Sensor
  • 950IS Intrinsically Safe LDT
  • 950MD Mill Duty Housing LDT
  • 952 BlueOx LDT
  • 953A/D/SSI VMAX LDT
  • 953N ReadyLink EtherNet/IP
    LDT with RapidRecall
  • 955 eBrik
  • 955A BRIK Gen III LDT
  • 955C/CA/CD/CDQ BRIK Gen III
  • 955D BRIK Gen III LDT
  • 955DQ BRIK Gen III LDT
  • 955LC BRIK LDT
  • 955S Smart BRIK LDT
  • 955 BRIK Accessories
  • 956 BLOK Housing Option
  • 956S BLOK LDT
  • 957N ReadyLink EtherNet/IP
    LDT with RapidRecall
  • 957A, D & SSI Brik LDT
  • 957A/D/SSI BRIK LDT
    Accessories
  • Rod Style LDT Accessories
  • LDT Magnets, Cables,
    Accessories and Parts
  • 958A Embedded LDT
Other Measurements

Other Measurements

  • 6012/6013 Electrode
    Holders/Electrodes
  • 7010 Tilt Switch Float
  • 7014 Unifloat
  • 7100 Leak Detect Stik
  • 7230 HT Digital Probe
  • 7250 Digital Stik
  • 7330 Pro-Stik II
Press Safety Products

Press Safety Products

  • 1999 Semelex II Safetimeter
  • 1025 Foot and Palm Switches

Gemco Industrial Brakes

Gemco Industrial Brakes

Electro-Thrust Brakes (ET)
   - Thrust Shoe Brakes
Hydraulic Brakes (H, HM)
   - Hydraulic Shoe Brakes
   - Replacement Parts
Magnetic Brakes (TM)
   - Magnetic DC Shoe Brakes
   - Replacement Parts
Solenoid Brakes (CB)
   - Solenoid AC Shoe Brakes
MSDS
   - MSDS Information
Control Relays

Control Relays

  • 1500 Induction Style Relay
  • 5200 Solid State Relay
  • 5400 Plug In Style Solid State
    Relay
  • 5600 Solid State Relay
  • 8040 Standard Control and
    Alarm Panel
  • Motogard - Over-Temperature
    Protection
Frequently Requested Quotations

Frequently Requested Quotations

  • Actuating Cylinder
  • Hydraulic Shoe Brakes
  • Solenoid DC Shoe Brakes
  • Solenoid AC Shoe Brakes
  • Various Replacement Parts
  • 1950 Series Snap Switches
  • And more

This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
  ACH Form: Word   /   PDF
Supplier of Industrial Brake Parts Since 1985
