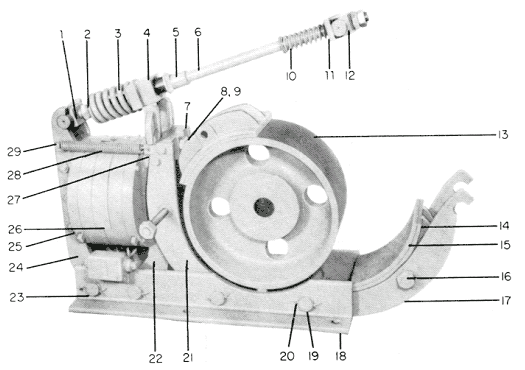

Ametek Gemco TM1035 Heavy Duty AISE Spring Set Magnetic Release Shoe Brake Assembly
and All Replacement Parts


No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-TM-1035 Ametek Gemco DC Brake 10 "
Part TM-1035
TM1035
Heavy Duty AIST Spring Set Magnetically Released Brake Assembly
Direct Current Clapper Type
10 Inch Wheel Diameter
Voltage DC with Shunt or Series Wound Coils
With Series Coils 200 FT. LBS., 1/2 Hour & 130 FT LBS 1 Hour
With Shunt Coils 200 FT. LBS., 1 Hour & 150 FT LBS 8 Hours
A 10 X 3.75 Inch Brake Wheel is not included
A Rectifier for AC Voltages is available at additional cost
Motor Freight Only
Normally a Stock Item with a Shunt Wound Coil
Normally a Stock Item @ BPI
Ships from Stock to 8 Weeks
Dated 01-2024
(165LBS)
- 0 $8,955.00
1 1 AME-E008067 Ametek Gemco Hinge Block
Part E008067
Hinge Block on the Magnet End
For a TM-83 & TM-1035 DC Brake
Item 1
Old WEST 469B671H02
Dated 01-2024
- 0 $819.00
2 1 AME-E010076 Ametek Gemco Seat
Main Spring Seat / Spring Retainer
For a TM-1035 Brake Assembly
Item 2, 1 per brake
aka 318B795H03
Dated 01-2024
- 0 $456.00
3 1 AME-E010080 Ametek Gemco Main Spring TM 10"
Part E010080
Old Part 438A072H11
For a 10 Inch TM-1035 Brake
Item 3, 1 per brake
A Recommended Spare Part
(1LBS) H 4" L 5" W 4" Box
4 $192.00
4 1 AME-E010074 Ametek Gemco Inner Hinge Block TM-1035
Part E010074
aka E010074999
For a TM-1035 Brake, Tie Rod
Item 4, 1 per Brake
Old WEST 318B791H03
Ships from Stock to 3 Weeks
Dated 01-2024
2 $586.00
5 1 AME-E010075 Ametek Gemco Bushing
Part E010075
Release Bushing on a TM-83 & TM-1035 Brake
Item 5, 1 per brake
aka Old West 318B792H02
Stock to 3 weeks
Dated 01-2024
- 2 $849.00
6 1 AME-E010086 Ametek Gemco Tie Rod
Part E010086
For a TM-1035 10 Inch Brake
Item 6, 1 per brake
Old WEST 635C104G03
Dated 01-2024
- 1 $695.00
7 1 AME-E010083 Ametek Gemco Adj Screw Block TM1035
Part E010083
Old Part 438A217H01
Adjusting Screw Block
For a 10 Inch TM-1035 DC Brake
Item 7, 1 per brake
Ships in 2 Weeks, Peck MI
Dated 01-2024
(5LBS)
- 1 $501.00
8 1 AME-E008035 Ametek Gemco Adjusting Screw Brake TM
Part E008035
aka E008035006
Adjusting Screw
For an 8" TM-83 or 10" TM-1035 Brake
1 per brake
Old WEST 318B793H02
Ships in 2 Weeks
Dated 01-2024
- 4 $273.00
9 1 AME-Flex locknut N/A - 0 N/A N/A N/A
10 1 AME-E010079 Ametek Gemco Spring
Part E010079
aka E010079993
Wheel End Spring
For a TM-83 & TM-1035 Brake Tie Rod
Item 10, 1 per brake
Old WEST 438A070H13
A Recommended Spare Part
(1LB) H 4" L 5" W 4" Box
4 $99.00
11 1 AME-E008031 Ametek Gemco Seat. Spring Seat
Part E008031
Wheel End Spring Seat
For a TM-83 & TM-1035 Brake
Item 11, 1 per brake
Old WEST 318B777H02
Dated 01-2024
- 1 $179.00
12 1 AME-E008068 Ametek Gemco Hinge Block
Wheel End Hinge Block
For a TM-83 & TM-1035 Brake
Item 12, 1 per brake
aka 318B787H03
Dated 01-2024
- 1 $820.00
13 1 AME-E010500 Ametek Gemco Brake Wheel 10 Inch
Part E010500
aka E010500999
For the TM-1035 DC Brake Assembly
And ET-10 Thruster Brake
With the Offset Style Hub, Stock Bore
10.02 Inch Brake Wheel Diameter
3.75 Inch Face Width
4.25 Inch Hub Offset
4.25 Inch Hub Length Through Bore
3.75 Inch Hub Diameter
Solid Hub with Bore Center Drilled
2.75 Inch Maximum Recommended Bore
4425 Maximum RPM
Cast from ASTM A 536 Ductile Iron
80-60-03 or 80-55-06
Ships in 4 Weeks, Peck MI
Dated 10-2021
(40LBS) H 6" L 10" W 10" Box
- 0 $2,179.44
14 2 AME-E010047 Ametek Gemco Brake Shoe Assembly TM 10"
Part E010047
aka E0100470002
Old Part 635C292G01
For a 10 Inch TM-1035 or ET-10 Brake
Item 14
2 per brake, sold each
Premium OEM Non-Asbestos Bonded Lining Material
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(5LBS) H 4" L 10" W 4" Box
0 $1,060.00
15 1 AME-E010114 Ametek Gemco Lining Kit TM-1035
Part E010114
For a 10 Inch TM-1035 DC Brake
Pair of Premium Non-Asbestos Linings & Fasteners
8 Drilled & Countersunk Holes
Includes 18 Rivets
Old WEST 861C691G17
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
C. F. for Pricing
Dated 01-2024
(2LBS) H 6" L 4" W 4" Box
0 N/A N/A N/A
16 2 AME-E010070 Ametek Gemco Bolt. Brake Shoe Bolt Assembly
Hardened Bolt with Nut, Lockwasher & Cotter Pin
For a TM-83, TM-1035 & ET-10 Brake
2 per brake, sold each
aka 27D7221H14
Dated 01-2024
- 2 $243.00
17 1 AME-E010115 Ametek Gemco Brake Shoe Arm
Outer Brake Shoe Arm
For a TM-1035 Brake
Item 17, 1 per brake
aka 635C306G01
Dated 01-2024
- 0 $1,172.00
  2 AME-E008028 Ametek Gemco Bushing TM 8 & 10"
Part E008028
aka E008028999
Old Part 31D4118H04
For a TM-83 or TM-1035 DC Brake
12 per brake, sold each
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 6 $48.00
18 1 AME-E010116 Ametek Gemco Base Assembly
For a TM-1035 DC Brake
Item 18, 1 per brake
aka 635C300G01
C. F. for Pricing
Dated 01-2024
- 0 N/A N/A N/A
19 8 AME-E008028 Ametek Gemco Bushing TM 8 & 10"
Part E008028
aka E008028999
Old Part 31D4118H04
For a TM-83 or TM-1035 DC Brake
12 per brake, sold each
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 6 $48.00 Item #17 -
20 4 AME-E010072 Ametek Gemco Pin TM 8 or 10"
Part E010072
aka E010072006
Old Part 318B789H03
Pivot Pin
For a TM-83 or TM-1035 Brake
Item 20, 4 per brake
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
1 $194.00
21 1 AME-E010117 Ametek Gemco Brake Part TM 10 Inch
Inner Brake Shoe Arm with Bushings
For a 10 Inch TM-1035 DC Brake
Item 21, 1 per brake
aka 635C306G02
Dated 01-2024
- 0 $1,211.00
  2 AME-E008028 Ametek Gemco Bushing TM 8 & 10"
Part E008028
aka E008028999
Old Part 31D4118H04
For a TM-83 or TM-1035 DC Brake
12 per brake, sold each
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 6 $48.00 Item #17 -
22 1 AME-E010118 Ametek Gemco Clapper & Arm
For TM-1035 Brake
1 per brake
Item 22
aka 635C317G01
Dated 01-2024
- 0 $2,185.00
  2 AME-E008027 Ametek Gemco Bushing TM 8 & 10"
Part E008027
aka E008027999
Old Part 31D4114H11
Clapper Arm Bushing
For a TM-83 or TM-1035 Brake
2 per brake, sold each
Ships from Stock to 10 Days
Dated 01-2023
(1LB) H 4" L 6" W 4" Box
- 0 $46.00
23 1 AME-E008029 Ametek Gemco Pin TM 8 & 10"
Part E008029
aka E008029006
Old Part 318B571H03
Stop Pin
For a TM-83 or TM-1035 DC Brake
Ships from Stock to 10 Days
Dated 01-2024
(1LB) H 4" L 6" W 4" Box
- 0 $206.00
24 1 AME-E010119 Ametek Gemco Clapper Arm
Part E010119
aka E010119004
For a 10 Inch TM-1035 DC Brake
Item 24, 1 per brake
2 Arms - Pair with Bushings
Old WEST 635C308G01
Ships in 6 to 8 Weeks
Dated 01-2024
- 0 $1,172.00
25 1 AME-E010078 Ametek Gemco Clapper
For a TM-1035 Brake
Item 25, 1 per brake
aka 318B988G01
Dated 01-2024
- 0 $1,754.00
26 2 AME-Coil and magnet N/A - 0 N/A N/A N/A
  1 AME-E010077 Ametek Gemco Dust Seal
For the Coil on a TM-1035
aka 318B917H03
Dated 01-2024
- 0 $134.00
27 2 AME-E008032 Ametek Gemco Spring Clip TM 8 & 10"
Part E008032
Old Part 318B778H02
For a TM-83 or TM-1035 Brake
Item 27, 2 per brake, sold each
Ships from Stock to 10 Days
Dated 01-2024
(1LB) H 4" L 6" W 4" Box
- 0 $81.00
28 2 AME-E010085 Ametek Gemco Spring TM 10"
Part E010085
Old Part 438A411H03
Tension Spring
For a TM-1035 DC Brake
Item 28, 2 per brake, sold each
A Recommended Spare Part
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 0 $119.00
29 1 AME-E010073 Ametek Gemco Pin TM
Part E010073
aka E010073006
Tension Spring Pin
For a TM-83 or TM-1035 DC Brake
Old WEST 318B790H03
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB)
- 3 $46.00
Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)

Web Site Features

Part Number Lookup

Enter at least three characters of a Gemco part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Application Notes

Application Notes

Check-out application notes compiled using real-life situations our clients have efficiently resolved using various Gemco products, in these application areas:

  • Cranes
  • Battery Manufacturing
  • Fiberglass Winders
  • Hydraulic Cylinders
  • Crusher/Baler
  • Stretch Hooding Machine
  • Electric Arc Furnace Cover
  • And more
PLS, PLC and Network Modules

PLS, PLC and Network Modules

  • 1746 LDT Interface Card
  • 1989 Quik-Set III Multi-Turn PLS
  • 1990DN DeviceNet Resolver
     Interface Module
  • 1991 Quik-Set IV UHS PLS
  • 1992 Press Set
  • 1995A/B/E/L Micro-Set PLS
  • 1996 Ram Set
  • 2110 Shut Height Monitor
  • 2120 PLC Interface Module
  • 2500 High Speed PLS

Rotary Feedback

Rotary Limit Switches, Position Sensors, Resolvers, Encoders

  • 1950 Precision Snap Switches
  • 1970 Drive-Chek Control
  • 1980 Rotating Cam Limit Switch
  • 1980R Rotating Cam Limit
     Switch with Resolver
  • 1983 Optical Limit Switch
  • 1986A standard foot mount
  • 1986B 2.25" sqr flange mount
  • 1986C 2.06" sqr flange mount
  • 1986D 2.50" dia face mount
  • 1986DN DeviceNet resolver
  • 1986E 100mm face mount
  • 1986G square flange mount
  • 1986GG multi-turn dual
  • 1986I 4.00" round face mount
  • 1986F standard block style
  • 1986H servo mount resolver
  • 1986MD mill duty housing
  • 1986XP explosion proof
  • 1997 Gate Hoist Rotating Cam
     Limit Switch, Designed to
     Meet Specifications of The
     Corps of Engineers

  • 2000 RLS
  • 2006 RLS
  • 3001 Adjustable Couplings
Linear Feedback

Linear Displacement Transducers

  • 925 Linear Cable Reel Sensor
  • 950IS Intrinsically Safe LDT
  • 950MD Mill Duty Housing LDT
  • 952 BlueOx LDT
  • 953A/D/SSI VMAX LDT
  • 953N ReadyLink EtherNet/IP
    LDT with RapidRecall
  • 955 eBrik
  • 955A BRIK Gen III LDT
  • 955C/CA/CD/CDQ BRIK Gen III
  • 955D BRIK Gen III LDT
  • 955DQ BRIK Gen III LDT
  • 955LC BRIK LDT
  • 955S Smart BRIK LDT
  • 955 BRIK Accessories
  • 956 BLOK Housing Option
  • 956S BLOK LDT
  • 957N ReadyLink EtherNet/IP
    LDT with RapidRecall
  • 957A, D & SSI Brik LDT
  • 957A/D/SSI BRIK LDT
    Accessories
  • Rod Style LDT Accessories
  • LDT Magnets, Cables,
    Accessories and Parts
  • 958A Embedded LDT
Other Measurements

Other Measurements

  • 6012/6013 Electrode
    Holders/Electrodes
  • 7010 Tilt Switch Float
  • 7014 Unifloat
  • 7100 Leak Detect Stik
  • 7230 HT Digital Probe
  • 7250 Digital Stik
  • 7330 Pro-Stik II
Press Safety Products

Press Safety Products

  • 1999 Semelex II Safetimeter
  • 1025 Foot and Palm Switches

Gemco Industrial Brakes

Gemco Industrial Brakes

Electro-Thrust Brakes (ET)
   - Thrust Shoe Brakes
Hydraulic Brakes (H, HM)
   - Hydraulic Shoe Brakes
   - Replacement Parts
Magnetic Brakes (TM)
   - Magnetic DC Shoe Brakes
   - Replacement Parts
Solenoid Brakes (CB)
   - Solenoid AC Shoe Brakes
MSDS
   - MSDS Information
Control Relays

Control Relays

  • 1500 Induction Style Relay
  • 5200 Solid State Relay
  • 5400 Plug In Style Solid State
    Relay
  • 5600 Solid State Relay
  • 8040 Standard Control and
    Alarm Panel
  • Motogard - Over-Temperature
    Protection
Frequently Requested Quotations

Frequently Requested Quotations

  • Actuating Cylinder
  • Hydraulic Shoe Brakes
  • Solenoid DC Shoe Brakes
  • Solenoid AC Shoe Brakes
  • Various Replacement Parts
  • 1950 Series Snap Switches
  • And more

This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
  ACH Form: Word   /   PDF
Supplier of Industrial Brake Parts Since 1985
