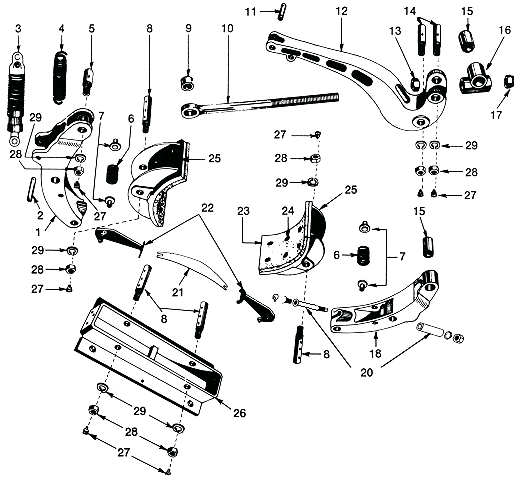

Ametek Gemco J002932 18 X 8 H Hydraulic Brake Assembly and All Replacement Parts

No	Qty Req'd	Part Number	Description	Picture	Stock Qty	Price Each	Qty Ord'd	Update Cart
0	1	AME-J002932	Ametek Gemco Hydraulic Brake, 18 Inch Type H  Part J002932  18 Inch Type "H" Hydraulically Actuated Brake  0 to 900 LBS / FT of Dynamic Stopping Torque on a Manual Brake System  0 to 1800 LBS / FT of Dynamic Stopping Torque with a Air / Hydraulic Brake System  27.75 Inches Wide  34.375 Inches High with the brake being applied  The Hydraulic Brake Actuator and the Brake Wheel are sold separately  Ships in 10 Weeks, Peck MI  Dated 01-2024  (266LBS) Motor Freight Only	-	0	$9,878.00
1	1	AME-J002937	Ametek Gemco Brake Shoe Arm RH  Part J002937  aka J002937002 J2937  For an 18 Inch Hydraulic Brake  Brakes J002932 & J040065  Item 1, 1 per brake  Right Hand, Arm that the Hyd Actuator mounts on  [Ships in 4 to 6 weeks, Peck MI]  Dated 01-2024  (20LBS)	-	0	$1,437.00
2	1	AME-J105199	Ametek Gemco Pin Kit  Part J105199  For a 18 Inch Hydraulic Brake  New Snap Ring Pin Design  Changed June 1992, though both types still available  Spring Clipped Pins not threaded like the old style  Use J105202 for brakes older than 1992  Dated 01-2024  (18LBS) H 6" L 6" W 8" Box		0	$558.00
3	1	AME-J007905 Ametek Gemco Actuator  Part J007905  aka J7905 J007905002 JFD7905   Hydraulic Actuating Cylinder  For use on a 10, 14, or 18 Inch Manual. Single Brake Systems  1.125 Inch Diameter Bore  3 inch Stroke Length  Qty Two 1/2-20 Ports  Casting # on Cylinder Body JFF7985  Mfg by Licensed OEM  Normally a Stock Item @ BPI  Ships from Stock to 4 Weeks  Dated 01-2024  (5LBS) H 10" L 3" W 3" Box 0 $694.00 AME-J023437 Ametek Gemco Actuator  Part J023437  aka J023437002  Hydraulic Actuating / Slave Cylinder on a Brake  0.875 Inch Diameter Bore  3 inch Stroke Length  Qty Two 1/2-20 Ports  For use on a 10, 14, or 18 Inch Multiple / Powered Brake Systems  Casting # on Cylinder Body JFF7985  aka as J23437 & JFD23438 J023437002  Mfg by Licensed OEM  Normally a stock item @ BPI  Ships from Stock to 4 Weeks  Dated 01-2024  (5LBS) H 10" L 4" W 4" Box 0 $694.00
4	1	AME-J008135	Ametek Gemco Spring  Part J008135  aka J8135 J008135993  Main Return / Brake Release Spring  For a J002929 14 Inch  or J002932 18 Inch Hyd Brake  Item 4, 1 per brake  A Recommended Spare Part  CLE Cliffs 100052488  Normally a Stock Item @ BPI  Ships from Stock to 2 Weeks  Dated 01-2024  (1LB) H 4" L 8" W 4" Box		0	$166.00
5	1	AME-J105199	Ametek Gemco Pin Kit  Part J105199  For a 18 Inch Hydraulic Brake  New Snap Ring Pin Design  Changed June 1992, though both types still available  Spring Clipped Pins not threaded like the old style  Use J105202 for brakes older than 1992  Dated 01-2024  (18LBS) H 6" L 6" W 8" Box		0	$558.00	Item #2	-
6	2	AME-J105196	Ametek Gemco Friction Plug Kit  Part J105196  For a 18 Inch Hydraulic Brake Assembly  Holds brake shoes in the released position  Items 6 & 7  Two J006528 Springs & Two J006876 Plugs  Dated 01-2024  (1LB) H 4" L 5" W 4" Box		3	$164.00
7	4	AME-J105196	Ametek Gemco Friction Plug Kit  Part J105196  For a 18 Inch Hydraulic Brake Assembly  Holds brake shoes in the released position  Items 6 & 7  Two J006528 Springs & Two J006876 Plugs  Dated 01-2024  (1LB) H 4" L 5" W 4" Box		3	$164.00	Item #6	-
8	4	AME-J105199	Ametek Gemco Pin Kit  Part J105199  For a 18 Inch Hydraulic Brake  New Snap Ring Pin Design  Changed June 1992, though both types still available  Spring Clipped Pins not threaded like the old style  Use J105202 for brakes older than 1992  Dated 01-2024  (18LBS) H 6" L 6" W 8" Box		0	$558.00	Item #2	-
9	1	AME-J006694	Ametek Gemco Bushing  Part J006694  aka J6694 J006694999  Eye Bolt Bushing  For use with Eye Bolt J009634 on a 14 & 18 Inch Hydraulic Brake  Item 9, 1 per brake  Ships from Stock to 2 Weeks  Dated 01-2024  (1LB) H 5" L 4" W 4" Box	-	3	$85.00
10	1	AME-J010068	Ametek Gemco Eye Bolt & Bushing  Part J010068  aka J010068002  For a 14 or 18 Inch Brake  Arcelor 1111274 1111275  Ships from Stock to 3 Weeks  Dated 01-2024  (5LBS) H 4" L 7" W 4" Box		1	$922.00
11	1	AME-J105199	Ametek Gemco Pin Kit  Part J105199  For a 18 Inch Hydraulic Brake  New Snap Ring Pin Design  Changed June 1992, though both types still available  Spring Clipped Pins not threaded like the old style  Use J105202 for brakes older than 1992  Dated 01-2024  (18LBS) H 6" L 6" W 8" Box		0	$558.00	Item #2	-
12	1	AME-J001768	Ametek Gemco Lever Arm  Part J001768  For a 14 or 18 Inch Hydraulic Brake J002929 & J002932   AKA J1768 J001768780  Ref Item # 12  1 per brake  Dated 01-2024	-	0	$533.00
13	1	AME-J105193	Ametek Gemco Clamp Nut Kit  Part J105193  Clamp Nut Kit  14 Inch Brakes J002929 & J034735 Hyd Brakes  18 Inch Brakes J002932 & J040065 Hyd Brakes  Includes:  Item 13, Clamp Nut  Item 17, J009638 Adjusting Nut  Dated 01-2024  (1LB) H 4" L 5" W 4" Box		5	$76.00
14	2	AME-J105199	Ametek Gemco Pin Kit  Part J105199  For a 18 Inch Hydraulic Brake  New Snap Ring Pin Design  Changed June 1992, though both types still available  Spring Clipped Pins not threaded like the old style  Use J105202 for brakes older than 1992  Dated 01-2024  (18LBS) H 6" L 6" W 8" Box		0	$558.00	Item #2	-
15	2	AME-J006693	Ametek Gemco Bushing  Part J006693  aka J006693999  For a 14 or 18 Inch Brake Assembly  Item 15, 2 per brake, sold each  Ships from Stock to 2 Weeks  Dated 01-2024  (1LB) H 4" L 5" W 4" Box	-	12	$96.00
16	1	AME-J009637	Ametek Gemco Knuckle 5020 with Bushings  Part J009637  For 14 & 18 Inch Hydraulic Brakes  Item 16, 1 per brake  Dated 01-2024  (5LBS)	-	7	$281.00
17	1	AME-J105193	Ametek Gemco Clamp Nut Kit  Part J105193  Clamp Nut Kit  14 Inch Brakes J002929 & J034735 Hyd Brakes  18 Inch Brakes J002932 & J040065 Hyd Brakes  Includes:  Item 13, Clamp Nut  Item 17, J009638 Adjusting Nut  Dated 01-2024  (1LB) H 4" L 5" W 4" Box		5	$76.00	Item #13	-
18	1	AME-J002936	Ametek Gemco Brake Shoe Arm LH  Part J002936  aka J2936 J002936002  For an 18 Inch Hydraulic Brake  Brake Part J002932 & J040065  Item 18, 1 per brake  Ships in 4 Weeks, Peck MI  Dated 01-2024  (20LBS)	-	0	$1,437.00
20	1	AME-J087249	Ametek Gemco Shoe Centering Lock Kit  Part J087249  Shoe Centering Lock Kit  For a 10, 14 or 18 Inch Hydraulic Brake Assembly  Item 20, 1 per brake  Includes 5 items:  Shoe Centering Plug JFC10099  Shoe Centering Stem JFC10100  Lockwasher & Nut JFC10101  Dated 01-2024  (2LBS) H 4" L 5" W 4" Box		4	$157.00
21	1	AME-J002686	Ametek Gemco Spring  Part J002686  Shoe Centering Leaf Spring  For a 18 Inch Hyd Brakes J002932 & J40065  Item 21, 1 per brake  Dated 01-2024	-	13	$271.00
22	2	AME-J008128	Ametek Gemco Arm  Part J008128  Brake Shoe Centering Arm  For a J002932 & J040065 18 Inch Hydraulic Brakes  Item 22, 2 per brake, sold each  aka J008128002  Dated 01-2024  (3LBS) H 4" L 8" W 4" Box	-	0	$167.00
23	2	AME-J001276	Ametek Gemco Lining  Part J001276  Brake Lining for an 18 Inch Hydraulic Brake  Lining has 14 Drilled & Countersunk Holes  For J00363 Brass Fasteners sold separately  Ref Item # 23  2 per brake, sold each  aka 288DC J001276002  RF-38, Premium, Non Asbestos Material  MSDS Sheet Provided  aka J1276 J001276002  Dated 01-2024  (8LBS)	-	2	$391.00
24	28	AME-J000363	Ametek Gemco Fastener Assembly  Part J000363  Brass Brake Lining Fastener  For use with Linings J001276 & J001234  Item 24  5/8 Inch Diameter Brass Slotted Screw / Bolt, Nut & Lockwasher  For a 14 & 18 Inch Hyd Brake  6 per lining, 12 per brake, sold each  aka J363  Dated 01-2024  (1LB) H 4" L 5" W 4" Box		1166	$6.00
25	2	AME-J001803	Ametek Gemco / Wagner Brake Shoe Assembly  Part J001803  18 Inch Hydraulic Brake Shoe & Lining  Newer Style, Includes New Pin & Snap Rings  Premium Bonded Non-Asbestos Lining Material  Item 25, 2 per brake, sold each  Casting 1799 aka J1803 JF1803   Stock to 5 Weeks  Dated 01-2024  (35LBS) H 8" L 14" W 8" Box	-	2	$1,850.00
26	1	AME-J002935	Ametek Gemco Base / Frame  Part J002935  For a 18 Inch Hydraulic Brake  Brake J002935  Item 26  Dated 01-2023 C.F. for updated pricing  (40LBS)	-	0	N/A	N/A	N/A
27	7	AME-J105199	Ametek Gemco Pin Kit  Part J105199  For a 18 Inch Hydraulic Brake  New Snap Ring Pin Design  Changed June 1992, though both types still available  Spring Clipped Pins not threaded like the old style  Use J105202 for brakes older than 1992  Dated 01-2024  (18LBS) H 6" L 6" W 8" Box		0	$558.00	Item #2	-
28	7	AME-J105199	Ametek Gemco Pin Kit  Part J105199  For a 18 Inch Hydraulic Brake  New Snap Ring Pin Design  Changed June 1992, though both types still available  Spring Clipped Pins not threaded like the old style  Use J105202 for brakes older than 1992  Dated 01-2024  (18LBS) H 6" L 6" W 8" Box		0	$558.00	Item #2	-
29	7	AME-J105199	Ametek Gemco Pin Kit  Part J105199  For a 18 Inch Hydraulic Brake  New Snap Ring Pin Design  Changed June 1992, though both types still available  Spring Clipped Pins not threaded like the old style  Use J105202 for brakes older than 1992  Dated 01-2024  (18LBS) H 6" L 6" W 8" Box		0	$558.00	Item #2	-
