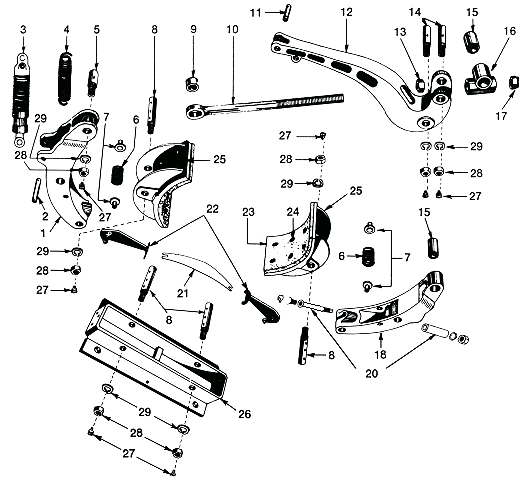

Ametek Gemco J002929 14 X 6 H Hydraulic Brake Assembly and All Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-J002929 Ametek Gemco Hydraulic Brake 14 Inch H
Part J002929
aka J002929001
14 Inch Diameter Type "H" Hydraulic Brake
0 to 600 LB FT Maximum Dynamic Torque with on a Single Manual Brake System
0 to 1400 LB FT Maximum Dynamic Torque with an Air Powered Brake System
Ships less the Hydraulic Actuator which must be selected & purchased separately
A 14 X 6 Inch Brake Wheel is not included
Motor Freight Only
Ships in 8 to 10 Weeks
Dated 01-2024
(161LBS) H 29" L 29" W 29" Skid
0 $6,769.00
1 1 AME-J002685 Ametek Gemco Brake Shoe Arm
Part J002685
For a 14 Inch Brake
Brakes J002929 & J0034735
Item 1, 1 per brake
Dated 01-2024
- 0 $1,437.00
2 1 AME-J105198 Ametek Gemco Pin Kit
Part J105198
aka J105198005
For a 14 Inch Hydraulic Brake
New Pin with Spring Clip Design
Qty 4, Item 8 Pin, for Base & Brake Shoes
Qty., 1 Item 5 Pin, for Top Actuator Arm
Changed June 1992, though both types still available
Spring Clipped Pins not threaded / old style
Use J105201 for brakes older than 1992
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(17LBS) H 6" L 8" W 8" Box
- 1 $535.00
3 1
AME-J007905 Ametek Gemco Actuator
Part J007905
aka J7905 J007905002 JFD7905
Hydraulic Actuating Cylinder
For use on a 10, 14, or 18 Inch Manual. Single Brake Systems
1.125 Inch Diameter Bore
3 inch Stroke Length
Qty Two 1/2-20 Ports
Casting # on Cylinder Body JFF7985
Mfg by Licensed OEM
Normally a Stock Item @ BPI
Ships from Stock to 4 Weeks
Dated 01-2024
(5LBS) H 10" L 3" W 3" Box
0 $694.00
AME-J023437 Ametek Gemco Actuator
Part J023437
aka J023437002
Hydraulic Actuating / Slave Cylinder on a Brake
0.875 Inch Diameter Bore
3 inch Stroke Length
Qty Two 1/2-20 Ports
For use on a 10, 14, or 18 Inch Multiple / Powered Brake Systems
Casting # on Cylinder Body JFF7985
aka as J23437 & JFD23438 J023437002
Mfg by Licensed OEM
Normally a stock item @ BPI
Ships from Stock to 4 Weeks
Dated 01-2024
(5LBS) H 10" L 4" W 4" Box
0 $694.00
4 1 AME-J008135 Ametek Gemco Spring
Part J008135
aka J8135 J008135993
Main Return / Brake Release Spring
For a J002929 14 Inch
or J002932 18 Inch Hyd Brake
Item 4, 1 per brake
A Recommended Spare Part
CLE Cliffs 100052488
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 8" W 4" Box
0 $166.00
5 1 AME-J105198 Ametek Gemco Pin Kit
Part J105198
aka J105198005
For a 14 Inch Hydraulic Brake
New Pin with Spring Clip Design
Qty 4, Item 8 Pin, for Base & Brake Shoes
Qty., 1 Item 5 Pin, for Top Actuator Arm
Changed June 1992, though both types still available
Spring Clipped Pins not threaded / old style
Use J105201 for brakes older than 1992
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(17LBS) H 6" L 8" W 8" Box
- 1 $535.00 Item #2 -
6 2 AME-J105195 Ametek Gemco Friction Plug Kit
Part J105195
For a 14 Inch Hydraulic Brake Assembly
Items 6 & 7
Includes:
2 Friction Plug Springs J006528
4 Friction Plugs J006689
1 per brake
Dated 01-2024
(2LBS) H 6" L 2" W 2" Box
0 $164.00
7 4 AME-J105195 Ametek Gemco Friction Plug Kit
Part J105195
For a 14 Inch Hydraulic Brake Assembly
Items 6 & 7
Includes:
2 Friction Plug Springs J006528
4 Friction Plugs J006689
1 per brake
Dated 01-2024
(2LBS) H 6" L 2" W 2" Box
0 $164.00 Item #6 -
8 4 AME-J105198 Ametek Gemco Pin Kit
Part J105198
aka J105198005
For a 14 Inch Hydraulic Brake
New Pin with Spring Clip Design
Qty 4, Item 8 Pin, for Base & Brake Shoes
Qty., 1 Item 5 Pin, for Top Actuator Arm
Changed June 1992, though both types still available
Spring Clipped Pins not threaded / old style
Use J105201 for brakes older than 1992
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(17LBS) H 6" L 8" W 8" Box
- 1 $535.00 Item #2 -
9 1 AME-J006694 Ametek Gemco Bushing
Part J006694
aka J6694 J006694999
Eye Bolt Bushing
For use with Eye Bolt J009634 on a 14 & 18 Inch Hydraulic Brake
Item 9, 1 per brake
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 5" L 4" W 4" Box
- 0 $85.00
10 1 AME-J010068 Ametek Gemco Eye Bolt & Bushing
Part J010068
aka J010068002
For a 14 or 18 Inch Brake
Arcelor 1111274 1111275
Ships from Stock to 3 Weeks
Dated 01-2024
(5LBS) H 4" L 7" W 4" Box
1 $922.00
11 1 AME-J105198 Ametek Gemco Pin Kit
Part J105198
aka J105198005
For a 14 Inch Hydraulic Brake
New Pin with Spring Clip Design
Qty 4, Item 8 Pin, for Base & Brake Shoes
Qty., 1 Item 5 Pin, for Top Actuator Arm
Changed June 1992, though both types still available
Spring Clipped Pins not threaded / old style
Use J105201 for brakes older than 1992
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(17LBS) H 6" L 8" W 8" Box
- 1 $535.00 Item #2 -
12 1 AME-J001768 Ametek Gemco Lever Arm
Part J001768
For a 14 or 18 Inch Hydraulic Brake J002929 & J002932
AKA J1768 J001768780
Ref Item # 12
1 per brake
Dated 01-2024
- 0 $533.00
13 1 AME-J105193 Ametek Gemco Clamp Nut Kit
Part J105193
Clamp Nut Kit
14 Inch Brakes J002929 & J034735 Hyd Brakes
18 Inch Brakes J002932 & J040065 Hyd Brakes
Includes:
Item 13, Clamp Nut
Item 17, J009638 Adjusting Nut
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
3 $76.00
14 2 AME-J105198 Ametek Gemco Pin Kit
Part J105198
aka J105198005
For a 14 Inch Hydraulic Brake
New Pin with Spring Clip Design
Qty 4, Item 8 Pin, for Base & Brake Shoes
Qty., 1 Item 5 Pin, for Top Actuator Arm
Changed June 1992, though both types still available
Spring Clipped Pins not threaded / old style
Use J105201 for brakes older than 1992
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(17LBS) H 6" L 8" W 8" Box
- 1 $535.00 Item #2 -
15 2 AME-J006693 Ametek Gemco Bushing
Part J006693
aka J006693999
For a 14 or 18 Inch Brake Assembly
Item 15, 2 per brake, sold each
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 4 $96.00
16 1 AME-J009637 Ametek Gemco Knuckle 5020 with Bushings
Part J009637
For 14 & 18 Inch Hydraulic Brakes
Item 16, 1 per brake
Dated 01-2024
(5LBS)
- 7 $281.00
17 1 AME-J105193 Ametek Gemco Clamp Nut Kit
Part J105193
Clamp Nut Kit
14 Inch Brakes J002929 & J034735 Hyd Brakes
18 Inch Brakes J002932 & J040065 Hyd Brakes
Includes:
Item 13, Clamp Nut
Item 17, J009638 Adjusting Nut
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
3 $76.00 Item #13 -
18 1 AME-J002684 Ametek Gemco Shoe Arm
Part J002684
For a 14 Inch Hyd Brake
Brakes J002929 & J0034735
Item 18, 1per brake
Dated 01-2024
- 0 $1,318.00
20 1 AME-J087249 Ametek Gemco Shoe Centering Lock Kit
Part J087249
Shoe Centering Lock Kit
For a 10, 14 or 18 Inch Hydraulic Brake Assembly
Item 20, 1 per brake
Includes 5 items:
Shoe Centering Plug JFC10099
Shoe Centering Stem JFC10100
Lockwasher & Nut JFC10101
Dated 01-2024
(2LBS) H 4" L 5" W 4" Box
0 $157.00
21 1 AME-J008126 Ametek Gemco Spring
Part J008126
aka J8126 J8126993
Leaf Spring for the Centering of the Brake Shoes
For a J002929 or J03473514 Inch Hydraulic Brakes
Item 21, 1 per brake
Ships from Stock to 3 Weeks
Dated 01-2024
(1LB) H 4" L 8" W 4" Box
- 0 $328.00
22 2 AME-J008124 Ametek Gemco Arm
Part J008124
aka J008124002
Brake Shoe Centering Arm
For a J002929 & J034735 14 Inch Hydraulic Brakes
Item 22, 2 per brake, sold each
aka J008124002
Dated 01-2024
(2LBS) H 4" L 8" W 4" Box
0 $188.00
23 2 AME-J001234 Ametek Gemco Lining 14"
Part J001234
aka J1234 J001234002
Brake Lining for a 14 Inch Hydraulic Brake
Lining has 8 Drilled & Countersunk Holes
For J000363 Brass Fasteners which are sold separately
Ref Item # 23
2 per brake, sold each
Premium Non Asbestos Lining Material
MSDS Sheet Provided
Dated 01-2024
(3LBS) H 6" L 14" W 10" Box
- 0 $317.00
24 16 AME-J000363 Ametek Gemco Fastener Assembly
Part J000363
Brass Brake Lining Fastener
For use with Linings J001276 & J001234
Item 24
5/8 Inch Diameter Brass Slotted Screw / Bolt, Nut & Lockwasher
For a 14 & 18 Inch Hyd Brake
6 per lining, 12 per brake, sold each
aka J363
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
1142 $6.00
25 2 AME-J001235 Ametek Gemco - Wagner Brake Shoe Assembly
Part J001235
aka J001235XXX
14 Inch Hydraulic Brake Shoe & Lining
Newer Style Pin & Snap Rings which are included
Premium Bonded Non-Asbestos Lining Material
Item 25, 2 per brake, sold each
Casting # 1225 aka J1235
Normally a Stock Item @ BPI
Ships from Stock to 4 Weeks
Dated 01-2024
(23LBS) H 6" L 16" W 8" Box
0 $1,487.00
26 1 AME-J002683 Ametek Gemco Base / Frame
Part J002683
For a J002929 14 Inch Brake
Arcelor 1094535
Dated 01-2024 C.F. for updated pricing
- 0 N/A N/A N/A
27 7 AME-J105198 Ametek Gemco Pin Kit
Part J105198
aka J105198005
For a 14 Inch Hydraulic Brake
New Pin with Spring Clip Design
Qty 4, Item 8 Pin, for Base & Brake Shoes
Qty., 1 Item 5 Pin, for Top Actuator Arm
Changed June 1992, though both types still available
Spring Clipped Pins not threaded / old style
Use J105201 for brakes older than 1992
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(17LBS) H 6" L 8" W 8" Box
- 1 $535.00 Item #2 -
28 7 AME-J105198 Ametek Gemco Pin Kit
Part J105198
aka J105198005
For a 14 Inch Hydraulic Brake
New Pin with Spring Clip Design
Qty 4, Item 8 Pin, for Base & Brake Shoes
Qty., 1 Item 5 Pin, for Top Actuator Arm
Changed June 1992, though both types still available
Spring Clipped Pins not threaded / old style
Use J105201 for brakes older than 1992
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(17LBS) H 6" L 8" W 8" Box
- 1 $535.00 Item #2 -
29 7 AME-J105198 Ametek Gemco Pin Kit
Part J105198
aka J105198005
For a 14 Inch Hydraulic Brake
New Pin with Spring Clip Design
Qty 4, Item 8 Pin, for Base & Brake Shoes
Qty., 1 Item 5 Pin, for Top Actuator Arm
Changed June 1992, though both types still available
Spring Clipped Pins not threaded / old style
Use J105201 for brakes older than 1992
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(17LBS) H 6" L 8" W 8" Box
- 1 $535.00 Item #2 -
Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)

Web Site Features

Part Number Lookup

Enter at least three characters of a Gemco part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Application Notes

Application Notes

Check-out application notes compiled using real-life situations our clients have efficiently resolved using various Gemco products, in these application areas:

  • Cranes
  • Battery Manufacturing
  • Fiberglass Winders
  • Hydraulic Cylinders
  • Crusher/Baler
  • Stretch Hooding Machine
  • Electric Arc Furnace Cover
  • And more
PLS, PLC and Network Modules

PLS, PLC and Network Modules

  • 1746 LDT Interface Card
  • 1989 Quik-Set III Multi-Turn PLS
  • 1990DN DeviceNet Resolver
     Interface Module
  • 1991 Quik-Set IV UHS PLS
  • 1992 Press Set
  • 1995A/B/E/L Micro-Set PLS
  • 1996 Ram Set
  • 2110 Shut Height Monitor
  • 2120 PLC Interface Module
  • 2500 High Speed PLS

Rotary Feedback

Rotary Limit Switches, Position Sensors, Resolvers, Encoders

  • 1950 Precision Snap Switches
  • 1970 Drive-Chek Control
  • 1980 Rotating Cam Limit Switch
  • 1980R Rotating Cam Limit
     Switch with Resolver
  • 1983 Optical Limit Switch
  • 1986A standard foot mount
  • 1986B 2.25" sqr flange mount
  • 1986C 2.06" sqr flange mount
  • 1986D 2.50" dia face mount
  • 1986DN DeviceNet resolver
  • 1986E 100mm face mount
  • 1986G square flange mount
  • 1986GG multi-turn dual
  • 1986I 4.00" round face mount
  • 1986F standard block style
  • 1986H servo mount resolver
  • 1986MD mill duty housing
  • 1986XP explosion proof
  • 1997 Gate Hoist Rotating Cam
     Limit Switch, Designed to
     Meet Specifications of The
     Corps of Engineers

  • 2000 RLS
  • 2006 RLS
  • 3001 Adjustable Couplings
Linear Feedback

Linear Displacement Transducers

  • 925 Linear Cable Reel Sensor
  • 950IS Intrinsically Safe LDT
  • 950MD Mill Duty Housing LDT
  • 952 BlueOx LDT
  • 953A/D/SSI VMAX LDT
  • 953N ReadyLink EtherNet/IP
    LDT with RapidRecall
  • 955 eBrik
  • 955A BRIK Gen III LDT
  • 955C/CA/CD/CDQ BRIK Gen III
  • 955D BRIK Gen III LDT
  • 955DQ BRIK Gen III LDT
  • 955LC BRIK LDT
  • 955S Smart BRIK LDT
  • 955 BRIK Accessories
  • 956 BLOK Housing Option
  • 956S BLOK LDT
  • 957N ReadyLink EtherNet/IP
    LDT with RapidRecall
  • 957A, D & SSI Brik LDT
  • 957A/D/SSI BRIK LDT
    Accessories
  • Rod Style LDT Accessories
  • LDT Magnets, Cables,
    Accessories and Parts
  • 958A Embedded LDT
Other Measurements

Other Measurements

  • 6012/6013 Electrode
    Holders/Electrodes
  • 7010 Tilt Switch Float
  • 7014 Unifloat
  • 7100 Leak Detect Stik
  • 7230 HT Digital Probe
  • 7250 Digital Stik
  • 7330 Pro-Stik II
Press Safety Products

Press Safety Products

  • 1999 Semelex II Safetimeter
  • 1025 Foot and Palm Switches

Gemco Industrial Brakes

Gemco Industrial Brakes

Electro-Thrust Brakes (ET)
   - Thrust Shoe Brakes
Hydraulic Brakes (H, HM)
   - Hydraulic Shoe Brakes
   - Replacement Parts
Magnetic Brakes (TM)
   - Magnetic DC Shoe Brakes
   - Replacement Parts
Solenoid Brakes (CB)
   - Solenoid AC Shoe Brakes
MSDS
   - MSDS Information
Control Relays

Control Relays

  • 1500 Induction Style Relay
  • 5200 Solid State Relay
  • 5400 Plug In Style Solid State
    Relay
  • 5600 Solid State Relay
  • 8040 Standard Control and
    Alarm Panel
  • Motogard - Over-Temperature
    Protection
Frequently Requested Quotations

Frequently Requested Quotations

  • Actuating Cylinder
  • Hydraulic Shoe Brakes
  • Solenoid DC Shoe Brakes
  • Solenoid AC Shoe Brakes
  • Various Replacement Parts
  • 1950 Series Snap Switches
  • And more

This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
  ACH Form: Word   /   PDF
Supplier of Industrial Brake Parts Since 1985
