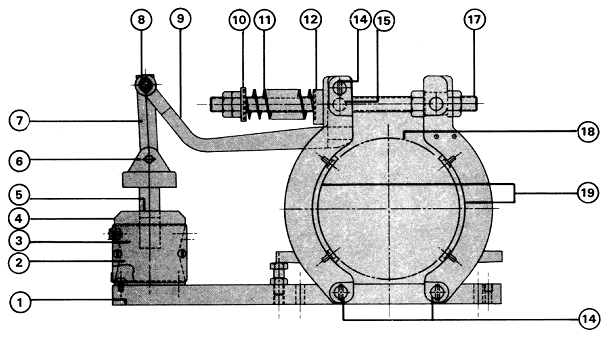

Ametek Gemco CB35 AC Magnetic Shoe Brake Assembly and All Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-CB-35 Ametek Gemco Solenoid Brake Assembly
Part CB-35
CB35
Spring Set / Solenoid Released
5.50 Inch Diameter
Many AC Voltages 460, 230, 115, 575
60 Hz Single Phase
35 FT LB with a Intermittent Duty Cycle
20 FT LB with a Continuous Duty Cycle
Less a 5.50 X 3.25 Inch Brake Wheel E005500
Reliable design with very few parts
Simple one point torque adjustment
Rugged long life solenoid - tested in more than 2 million operational cycles
Manual brake release with hand pressure on the solenoid arm
Solenoid plunger travel indicator
Simple two-point adjustment for lining wear
Is a Light Duty Solenoid Brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection of a brake
Normally a Stock Item @ BPI
Stock to 6 Weeks to Ship
Dated 01-2023
(34LBS) H 12" L 18" W 14" Box
4 $1,473.00
1 1 AME-E005042 Ametek Gemco Base
Part E005042
Brake Frame / Base
For a CB-35 Solenoid Brake
Item 1, 1 per brake
C.F. for Pricing
Dated 01-2024
(2LBS) H 4" L 8" W 4" Box
0 N/A N/A N/A
2 1
AME-E005051 Ametek Gemco Coil
Part E005051
Brake Coil
115 Volt AC 60 Hz
For a 5.5 Inch CB-35 Brake
Item 2, 1 per brake
aka 3208B04H05
Normally a stock item @ BPI
Dated 01-2024
(1LBS) H 4" L 5" W 4" Box
3 $388.00
AME-E005052 Ametek Gemco Brake Coil CB35 230V
Part E005052
Brake Coil
230 Volt AC 60 Hz
For a 5.5 Inch CB-35 Brake
Item 2, 1 per brake
aka 3208B04G06
Normally a stock item @ BPI
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
4 $388.00
AME-E005039 Ametek Gemco Brake Coil CB 5.5 460 V
Part E005039
aka E005039999
Old Part 3208B04G07
460 Volt AC 60 Hz
For a 5.5 Inch CB-35 Brake
Item 2, 1 per brake
Normally a stock item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(1LB) H 4" L 6" W 4" Box
0 $388.00
AME-E005053 Ametek Gemco Coil
Part E005053
Brake Coil
575 Volt AC 60 Hz
For a 5.5 Inch CB-35 Brake
Item 2, 1 per brake
aka
Normally a stock item @ BPI
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
1 $388.00
AME-E005054 Ametek Gemco Coil
Part E005055
Brake Coil
200 Volt AC 60 Hz
For a 5.5 Inch CB-35 Brake
Item 2, 1 per brake
aka
Normally a stock item @ BPI
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
0 $460.00
3 1 AME-E005044 Ametek Gemco Condulet - Junction Box
Part E005044
aka E005044999
For a CB-15 or CB-35 Solenoid Brake
Item 3, 1 per brake
Does NOT include the Cover Part E005095
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 0 $71.00
4 1 AME-E005055 Ametek Gemco Solenoid Assembly
Part E005055
aka E005055002
Old Part 3279B97H02
For a CB-35 5.5 Inch Diameter Brake
Includes the Plunger / Armature & Solenoid Guides
The Coil is NOT included
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(7LBS) H 5" L 6" W 5" Box
2 $420.00
5 2 AME-E005050 Ametek Gemco Solenoid Guide
Part E005050
aka E005050999
Old Part 6753A37H02
For a CB-15 or CB-35 Brake Assembly
Brass Fabrication not Plastic
Item 5, 2 per brake, but sold each
Normally a Stock item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
10 $42.00
6 1 AME-E005029 Ametek Gemco Pin
Part E005029
aka E005029006
For a CB-35 Brake Assembly
Connects Plunger to Link
1 & 3/8 Inches Long
Item 6, 1 per brake
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
1 $48.00
7 1 AME-E005035 Ametek Gemco Link
Part E005035
aka E005035006
For a CB35 Brake
Link between Plunger & Lever Arm
Item Ref 7 1 per brake
aka 3279B92H02
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2024
(1LBS) H 4" L 5" W 4" Box
4 $64.00
8 1 AME-E005028 Ametek Gemco Pin
Part E005028
aka E005028006
For a CB-35 5 & 1/2 Inch Brake Assembly
Pin connection between Vertical Link and Lever Arm
Item 7, 1 per brake
1.75 Inches Long
Old WEST 3279B92H02
Normally a Stock Item @ BPI
Ships from Stock to 10 Days
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 0 $49.00
9 1 AME-E005032 Ametek Gemco Lever Arm
Part E005032
For a CB35 5 & 1/2 Inch Brake Assembly
Lever between Plunger Link and Inner Shoe Arm
aka Westinghouse 2247C09H02
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 0 $157.00
10 1 AME-E005036 Ametek Gemco Spring Seat
Part E005036
Spring Seat on the Tie Rod
For a CB-35 Brake
Item 10, 1 per brake
aka 3279B94H01
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 1 $6.00
11 1 AME-E005038 Ametek Gemco Spring
Part E005038
Main Tension Spring
For a CB-35 / 5.5 Inch Brake
Item 11, 1 per brake
aka 3280B02H02
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 0 $59.00
12 1 AME-E005057 Ametek Gemco Spring Plate, 3279B90G02, CB35 Brake 5.5" Dia Replaced by E005034 - 0 $84.24
14 3 AME-E005027 Ametek Gemco Pin
Part E005027
For a 5.5 Inch CB-35 AC Brake
Item 14, 3 per brake
Located at the Top & Bottom of the Brake Shoes
aka 2247C08H04
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 0 $72.00
15 1 AME-E005031 Ametek Gemco Pin
Part E005031
For a CB-35 Brake
Item 15, 1 per brake
aka 2247C08H16
Dated 01-2024
(1LB) H 4" L 5" W 4" Box
- 3 $46.00
17 1 AME-E005033 Ametek Gemco Rod
Part E005033
Adjusting Rod
For a 5.5 Inch CB-35 Brake
Item 17, 1 per brake
aka 3279B86G02
Dated 01-2024
(2LBS) H 4" L 7" W 4" Box
- 0 $342.00
18 1 AME-E005500 Ametek Gemco Brake Wheel 5.5 Inch
Part E005500
aka E005500999
Old Part 2247C15H01
For the CB-35 AC Brake Assembly
5.50 Inch Brake Wheel Diameter, Stock Bore
3.25 Inch Face Width
2.62 Inch Hub Offset
2.62 Inch Hub Length Through Bore
2.75 Inch Hub Diameter
Solid Hub with Bore Center Drilled
1.625 Inch Maximum Recommended Bore
8050 Maximum RPM
Cast from ASTM A 536 Ductile Iron 80-60-03 or 80-55-06
Ships from Stock to 3 Weeks
Dated 10-2021
(10LBS) H 6" L 6" W 6" Box
- 7 $1,281.96
  1 AME-E005048 Ametek Gemco Brake Shoe & Lining CB 5.5"
Part E005048
aka E005048004
Old Part 247C28G02
For a CB35 Brake Assembly
Inner Shoe, close to solenoid
Bonded, Premium Non-Asbestos Lining Material
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(5LBS) H 5" L 10" W 5" Box
- 6 $507.00
  1 AME-E005047 Ametek Gemco Brake Shoe & Lining CB35 5.5
Part E005047
aka E005047004
Old Part 2254C27G02
For a CB35 Brake Assembly
Outer Shoe, away from the solenoid
Bonded, Premium, Non-Asbestos Lining Material
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 01-2024
(5LBS) H 5" L 10" W 5" Box
3 $507.00
19 1 AME-E005049 Ametek Gemco Lining Kit
Part E005049
For a 5.5 Inch CB-35 Brake
2 Drilled Linings & Push Pins
Premium OEM Non-Asbestos Lining Material
aka 3279B95G02
C.F. for Pricing
Dated 01-2024
(2LBS) H 4" L 6" W 4" Box
- 0 N/A N/A N/A
