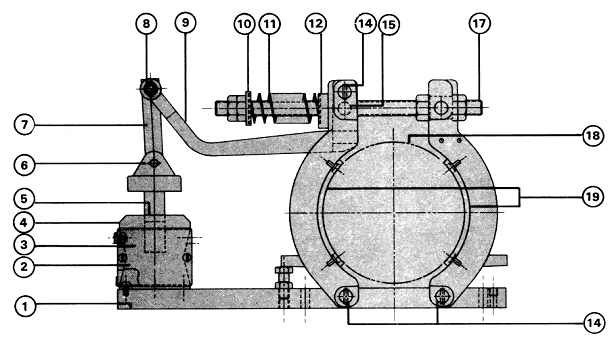

Ametek Gemco CB160 AC Magnetic Shoe Brake Assembly and All Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
0 1 AME-CB-160 Ametek Gemco Magnetic Shoe Brake
Part AME-CB-160
Spring Set / Solenoid Released
10 Inch Diameter
Many AC Voltages 460, 230, 115, 575
60 Hz Single Phase
160 FT LB Intermittent Duty
125 FT LB Continuous Duty
Less a 10.00 X 4.25 Inch Brake Wheel
Reliable design with very few parts
Simple one point torque adjustment
Rugged Long Life Solenoid - tested in more than 2 million operational cycles without electrical failure
Manual Brake Release with hand pressure on the solenoid arm
Solenoid plunger travel indicator - a mark on the plunger indicates when the brake should be adjusted for lining wear
Simple two-point adjustment for lining wear
Options available at additional cost include:
A Brake Wheel, Finished or Pilot Bore Part AME-E010800
Brake Enclosures NEMA 3 & 4
[Amazon] Dated 1/18
(80LBS) H 16" L 22" W 8" Box
2 $5,583.00
1 1 AME-E010068 Ametek Gemco Base. Brake Frame / Base
For a CB-75 & CB-110 Solenoid Brake
Item 1, 1 per brake
aka 9510D16H04
- 0 $594.00
2 1
AME-E007087 Ametek Gemco Coil 115 Volt
115 Volt AC 60 Hz
For a CB-110 or CB-160 Brake
(2LBS)
- 0 $536.00
AME-E007088 Ametek Gemco Coil
230 Volt AC, 60 Hz
For a CB-110 or CB-160 Brake
aka 3280B04G13
(2LBS) H 4.00" L 4.00" W 4.00"
[Amazon]
5 $536.00
AME-E007066 Ametek Gemco Brake Part CB
Part AME-E007066
Coil 460 Volt, 60Hz
For a CB-110 & CB-160 Brake
460 Volt AC, 60 Hz
Item 2, 1 per brake
aka 3280B04G15
[Amazon]
(3LBS) H 4" L 5" W 4"
0 $536.00
AME-E007089 Ametek Gemco Coil
For a CB-110 or CB-160 Brake
575 Volt AC, 60 Hz
(3LBS)
- 0 $536.00
AME-E007090 Ametek Gemco Coil 200 Volt 7 Inch
For a CB-110 Brake
200 Volt AC, 60 Hz
Item 2, 1 per brake
aka 6753A37H04
(3LBS) H 4.00" L 4.00" W 4.00"
- 0 $632.00
3 1 AME-E010069 Ametek Gemco Cover Plate
Part AME-E010069
Conduit / Junction Box Cover Plate
For CB75, CB110 or CB160 Brakes
[Amazon]
(1LB) H 4" L 5" W 4"
- 3 $47.00
4 1 AME-E010103 Ametek Gemco Solenoid Assembly
Part E010103
For a CB-160 10 Inch Diameter Brake
Includes the Plunger & Solenoid Guides
BUT NOT THE COIL
aka 3279B97H05
Arcelor 100149630
Normally a stock item
(8LBS) H 4" L 5" W 4" Box
[Amazon]
0 $583.00
5 2 AME-E007076 Ametek Gemco Guides
Part AME-E007076
Brass Solenoid Guides
For a CB-75, CB-110 or CB-160 Brakes
Item 5, sold each, 2 per brake
aka 6753A37H03 E007076999
[Amazon] Dated 1/18
(1LB) H 4" L 5" W 4" Box
14 $64.00
6 1 AME-E010056 Ametek Gemco Pin
For a CB-160 Brake
Item 6. 1 per brake
Connects Plunger to Link
aka 2247C08H12
(1LB)
- 6 $32.00
7 1 AME-E010062 Ametek Gemco Link
For a CB-160 Brake
Link between Plunger & Lever Arm
Item 7, 1 per brake
aka 3279B92H05
(2LBS) H 4.00" L 10.00" W 4.00"
7 $62.00
8 1 AME-E010055 Ametek Gemco Brake Part CB-160
Part AME-E010055
Pin
For a CB-160 Brake
Item 8, 1 per brake
Connects top of Link to Brake Lever
aka 2247C08H11
(1LB) H 4" L 5" W 4" Box
- 6 $53.00
9 1 AME-E010059 Ametek Gemco Brake Part CB-160
Part AME-E010059
Lever Arm
For a CB-160 Brake
Main Brake Lever
Item 9, 1 per brake
aka 2247C09H04
(3LBS) H 4" L 10" W 4" Box
- 0 $163.00
10 1 AME-E007063 Ametek Gemco Brake Part CB Brakes
Part AME-E007063
Spring Seat on the Tie Rod
For a CB-75 , CB-110 & CB-160 Brake
Item 10, 1 per brake
aka 3279B93H01
[Amazon]
(1LB) H 4" L 5" W 4" Box
3 $5.00
11 1 AME-E010064 Ametek Gemco Brake Part CB
Part AME-E010064
Main Spring
For a CB-75, CB-110 or CB-160 Brake
3.85 Inches Long Installed DeEnergized
Item 11, 1 per brake
aka 3280B01H01
[Amazon]
(1LB) H 4" L 5" W 4" Box
1 $60.00
12 1 AME-E010104 Ametek Gemco Spring Plate Assembly,
1 per brake
Item 12
- 0 $158.00
14 3 AME-E010054 Ametek Gemco Pin
For a CB-160 Brake
Item 14
3 per brake, sold each
Located at the top & bottom of the brake shoes
aka 2247C08H10
(1LB)
- 0 $104.00
15 1 AME-E010058 Ametek Gemco Pin
aka 2247C08H20
- 0 $56.00
17 1 AME-E010098 Ametek Gemco Rod. Adjusting Rod
For a CB-160 10 Inch Brake
1 per brake
Item 17
aka 3279B86G04
- 0 $264.00
18 1 AME-E010500 Ametek Gemco Brake Wheel 10 Inch
For the TM-1035 DC Brake Assembly
Part AME-E010500
And ET-10 Thruster Brake
With the Offset Style Hub, Stock Bore
10.02 Inch Brake Wheel Diameter
3.75 Inch Face Width
4.25 Inch Hub Offset
4.25 Inch Hub Length Through Bore
3.75 Inch Hub Diameter
Solid Hub with Bore Center Drilled
2.75 Inch Maximum Recommended Bore
4425 Maximum RPM
Cast from ASTM A 536 Ductile Iron 80-60-03 or 80-55-06
[Amazon]
(40LBS) H 6" L 10" W 10" Box
- 1 $1,367.89
  1 AME-E010106 Ametek Gemco Shoe & Lining
Inner Brake Shoe
For a CB-160 10 Inch Electric Brake
Bonded Premium Non-Asbestos Lining Material
aka 2254C28G04
(15LBS)
- 0 $1,200.00
  1 AME-E010107 Ametek Gemco Shoe & Lining
Outer Brake Shoe
For a CB-160 10 Inch Electric Brake
Bonded Premium Non-Asbestos Lining Material
aka 2254C27G04
(15LBS)
- 1 $1,200.00
19 1 AME-E010108 Ametek Gemco Lining & Rivet Kit
For a CB-160 Solenoid Brake 10 Inch
Premium OEM Non-Asbestos Drilled Linings
Qty. 2, with 6 Drilled and Countersunk Holes & 18 Brass Push Pins
Linings for 2 Brake Shoes / 1 Pair
aka 3279B95G04
(1LB)
- 3 $254.00
