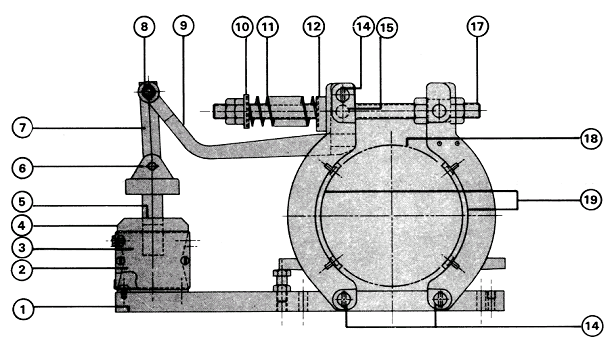

Ametek Gemco CB110 AC Magnetic Shoe Brake Assembly and All Replacement Parts

No	Qty Req'd	Part Number	Description	Picture	Stock Qty	Price Each	Qty Ord'd	Update Cart
0	1	AME-CB-110	Ametek Gemco Solenoid Brake Assembly CB  Part CB-110  CB110  Spring Set / Solenoid Released  7.00 Inch Diameter  110 - 230 - 460 - 575 Volt AC  60 Hz Single Phase  110 FT LB with a Intermittent Duty Cycle  85 FT LB with a Continuous Duty Cycle  Less a 7.00 X 3.25 Inch Brake Wheel E007500  Options include, 230, 115 & 575 Volt  Reliable design with very few parts  Simple one point torque adjustment  Rugged long life solenoid  Tested in more than 2 million operational cycles without electrical failure  Manual Brake Release with hand pressure on the solenoid arm  Solenoid Plunger Travel Indicator  Simple Two-Point adjustment for lining wear  Light Duty Solenoid Brake for up to Class "C" Cranes  Application Safety Factors need to be followed during selection of a brake  Normally a Stock Item @ BPI  Stock to 6 Weeks to Ship  Dated 01-2024  (60LBS) H 12" L 20" W 7" Box		0	$4,421.00
1	1	AME-E007069	Ametek Gemco Base. Brake Frame / Base  For a CB-75 & CB-110 Solenoid Brake  Item 1, 1 per brake  aka 9510D16H03  C. F. for Pricing  Dated 01-2024	-	0	N/A	N/A	N/A
2	1	AME-E007087 Ametek Gemco Coil CB110 & CB160 115V  Part E007087  aka E007087997  Old Part 3280B04G13   Solenoid Brake Coil  For a 7" CB110 or 10" CB160 Brake  115 Volt AC, 60 Hz  Item 2, 1 per brake  Normally a Stock Item @ BPI  Ships from Stock to 3 Weeks  Dated 01-2024  (2LBS) H 4" L 5" W 4" Box - 0 $841.00 AME-E007088 Ametek Gemco Brake Coil CB 230V  Part E007088  aka E007088997  Old 3280B04G13  230 Volt AC, 60 Hz  For CB-110 or CB-160 Brake  Normally a Stock Item @ BPI   Ships from Stock to 3 Weeks  Dated 01-2024  (3LBS) H 6" L 4" W 4" Box 0 $841.00 AME-E007066 Ametek Gemco Brake Coil CB  Part E007066  aka E007066997  Old Part 3280B04G15  Coil 460 Volt, 60Hz  For a CB-110 & CB-160 Brakes  460 Volt AC 60 Hz  Item 2, 1 per brake  Normally a Stock Item @ BPI  Ship from Stock to 3 Weeks  Dated 01-2024  (3LBS) H 4" L 5" W 4" Box 0 $841.00 AME-E007089 Ametek Gemco Coil CB 7" 575  Part E007089  aka E007089997  Solenoid Brake Coil  For a 7 Inch CB-75 Brake  575 Volt AC, 60 Hz  Item 2, 1 per brake  Old WEST 3280B04G16   Dated 01-2024  (2LBS) H 4" L 5" W 4" Box - 0 $841.00 AME-E007090 Ametek Gemco Coil CB 7" 575  Part E007089  aka E007089997  Solenoid Brake Coil  For a 7 Inch CB-75 Brake  575 Volt AC, 60 Hz  Item 2, 1 per brake  Old WEST 3280B04G16   Dated 01-2024  (2LBS) H 4" L 5" W 4" Box - 1 $990.00
3	1	AME-E010069	Ametek Gemco Conduit Box CB75 - CB160  Part E010069  aka E010069999  Old Part 9510D19G01   Conduit - Junction Box   Does not include Cover Plate or Fasteners  For CB75, CB110 or CB160 Brakes  Normally a Stock Item @ BPI  Ships from Stock to 10 Days  Dated 01-2024  (1LB) H 4" L 6" W 4" Box	-	4	$71.00
4	1	AME-E007091	Ametek Gemco Solenoid Assembly CB-110  Part E007091  aka E007091002  For a CB-110 7 Inch Diameter Brake  Includes the Plunger & Solenoid Guides  NOT the Coil  Item 4, 1 per brake  Old 3279B97H14   Normally a Stock Item @ BPI  Ships from Stock to 3 Weeks   Dated 01-2024  (8LBS) H 4" L 5" W 4" Box		5	$908.00
5	2	AME-E007076	Ametek Gemco Solenoid Guide  Part E007076  aka E007076999   Brass Solenoid Guide  For a CB-75, CB-110 or CB-160 Brakes  Item 5, 2 per brake, sold each  Old West 6753A37H03  Normally a Stock Item @ BPI  Ships from Stock to 10 Days  Dated 01-2024  (1LB) H 4" L 5" W 4" Box		0	$96.00
6	1	AME-E007055	Ametek Gemco Pin  Part E007055  aka E007055006  Old Part 2247C08H09  For a CB-75, CB110 & CB-160 Brake  Connects Plunger to Link  Item 6, 1 per brake  Dated 01-2024  (1LB)	-	9	$49.00
7	1	AME-E007062	Ametek Gemco Link  Part E007062  aka E007062006  For a CB-110 Brake Assembly  Link between Plunger & Lever Arm  Item 7, 1 per brake  Old WEST 3279B92H04   Dated 01-2024  (1LB)		7	$71.00
8	1	AME-E007054	Ametek Gemco Pin CB75-110  Part E007054  aka E007054006  Old Part 247C08H08  For a CB75 & 110 Brake   Item 8, 1 per brake  Pin Connection of Link & Brake Arm  Dated 01-2024  (1LB)	-	8	$108.00
9	1	AME-E007058	Ametek Gemco Lever  Part E007058  Brake Lever  For a 7 Inch CB-75 & CB-110 Brake   Item 9, 1 per brake  aka 2247C09H03  Dated 01-2024  (3LBS) H 4" L 6" W 4" Box		3	$198.00
10	1	AME-E007063	Ametek Gemco Spring Seat CB  Part E007063  aka E007063006  Old Part 3279B93H01  Spring Seat on the Tie Rod  For a CB-75 , CB-110 & CB-160 Brake  Item 10, 1 per brake  Dated 01-2024  (1LB) H 4" L 5" W 4" Box		4	$5.00
11	1	AME-E010064	Ametek Gemco Main Spring  Part E010064  aka E010064993  Old Part 3280B01H01  For a CB-75, CB-110 or CB-160 Brake  3.85 Inches Long Installed DeEnergized  Item 11, 1 per brake  Ships from Stock to 2 Weeks  Dated 01-2024  (1LB) H 4" L 5" W 4" Box		2	$93.00
12	1	AME-E007084	Ametek Gemco Spring Plate Assembly  For a CB-75 or CB-100 Brake  Item 12, 1 per brake  aka 3279B90G03  Dated 01-2024	-	0	$239.00
14	3	AME-E007053	Ametek Gemco Pin  Part E007053  aka E007053006  Hardened Pin  For a 7 Inch CB75 & CB-110 Brake  Item 14, 3 per brake, sold each  Used with the Brake Shoes  aka 2247C08H07  Dated 01-2024  (2LBS) H 4" L 6" W 4" Box		3	$164.00
15	1	AME-E007057	Ametek Gemco Pin  Part E007057  aka E007057006  For a CB-75, CB110 & CB-160 Brake  Old WEST 2247C08H18  Dated 01-2024  (1LB)	-	2	$45.00
17	1	AME-E007059	Ametek Gemco Rod. Adjusting Rod  For a CB-75 & CB-110 Brake 7 Inch  Item 17, 1 per brake  aka 3279B86G03  Dated 01-2024	-	1	$391.00
18	1	AME-E007500	Ametek Gemco Brake Wheel 7 Inch  Part E007500  aka E007500999  For the CB-75 & CB-110 AC Brake   7.00 Inch Brake Wheel Diameter, Stock Bore  4.25 Inch Face Width  3.26 Inch Hub Offset  2.62 Inch Hub Length Through Bore  3.13 Inch Hub Diameter  Solid Hub with Bore Center Drilled   1.875 Inch Maximum Recommended Bore  Cast from ASTM A 536 Ductile Iron 80-60-03 or 80-55-06  Dated 01-2024  (25LBS) H 7" L 7" W 7" Box	-	3	$1,608.00
	1	AME-E007074	Ametek Gemco Brake Shoe & Lining CB 7"  Part E007074  aka E007074004  Old Part 2254C28G03  For a 7 Inch CB-75 or CB-110 Brake  Inner Shoe  Bonded Premium OEM Non-Asbestos Lining  1 per brake  Dated 01-2024  (9LBS) H 5" L 7" W 5" Box	-	4	$681.00
	1	AME-E007073	Ametek Gemco Brake Shoe & Lining CB 7"  Part E007073  aka E007073004  Old Part 2254C27G03  For a 7 Inch CB-75 or CB-110 Brake  Outer Shoe  Bonded Premium OEM Non-Asbestos Lining  1 per brake  Dated 01-2024  (9LBS) H 5" L 7" W 5" Box		2	$681.00
19	1	AME-E007078	Ametek Gemco Lining Kit CB 7"  Part E007078  aka E007078004  For a 7 Inch CB-75 or CB-110 Brake  Includes:  2 Linings Drilled & Countersunk for Fasteners  Fasteners / Rivets  Premium Non-Asbestos Lining Material  Ships from BPI Stock  Dated 01-2024  (1LB) H 4" L 6" W 4" Box	-	2	$318.00
